Individual hose record

KHJ2093 Hose Repair Specifications

Excavator · Case · CX380C-8 LC · Solenoid Valve

Finished length1,150 mm

Locate this hose

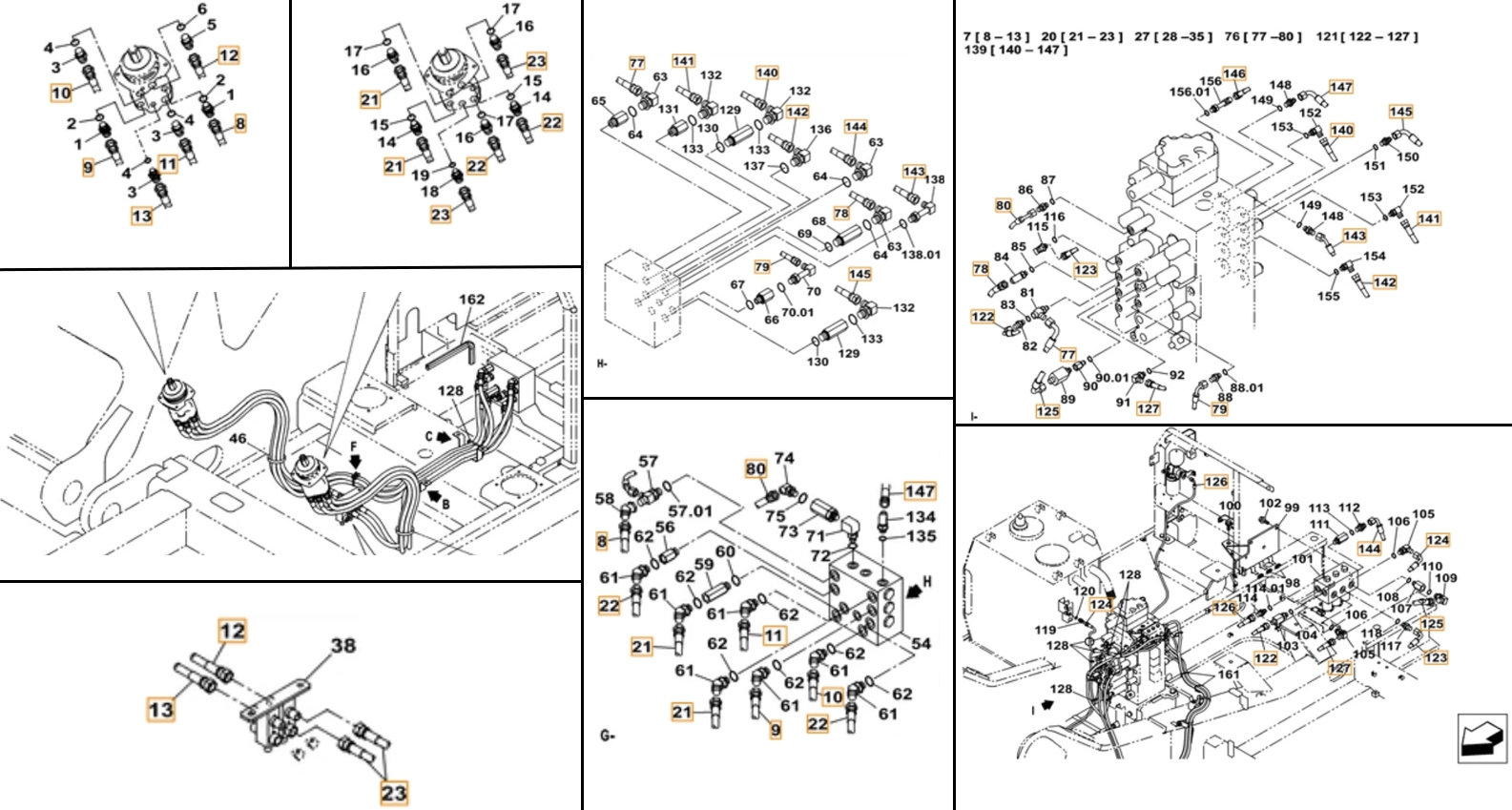

Installation diagram — Pipe No. 124

Locate Pipe No. 124 in the diagram, then confirm part number KHJ2093 before removing the hose.

Part number: KHJ2093
Diagram pipe number: 124
Installation route: 电磁阀(分配阀)~液压油箱过渡阀块
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,150 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 126

Installation route: 电磁阀(分配阀)~先导滤芯

Length: 4,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 40

Installation route: 电磁阀~先导滤芯

Length: 750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 45

Installation route: 电磁阀~液压油箱过渡阀块

Length: 2,200 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 126

Installation route: 电磁阀(分配阀)~先导滤芯

Length: 4,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
