Individual hose record

DS20111235 Hose Repair Specifications

Excavator · Doosan · DX140LC-3 · Control Valve

Finished length510 mm

Locate this hose

Installation diagram — Pipe No. 20

Locate Pipe No. 20 in the diagram, then confirm part number DS20111235 before removing the hose.

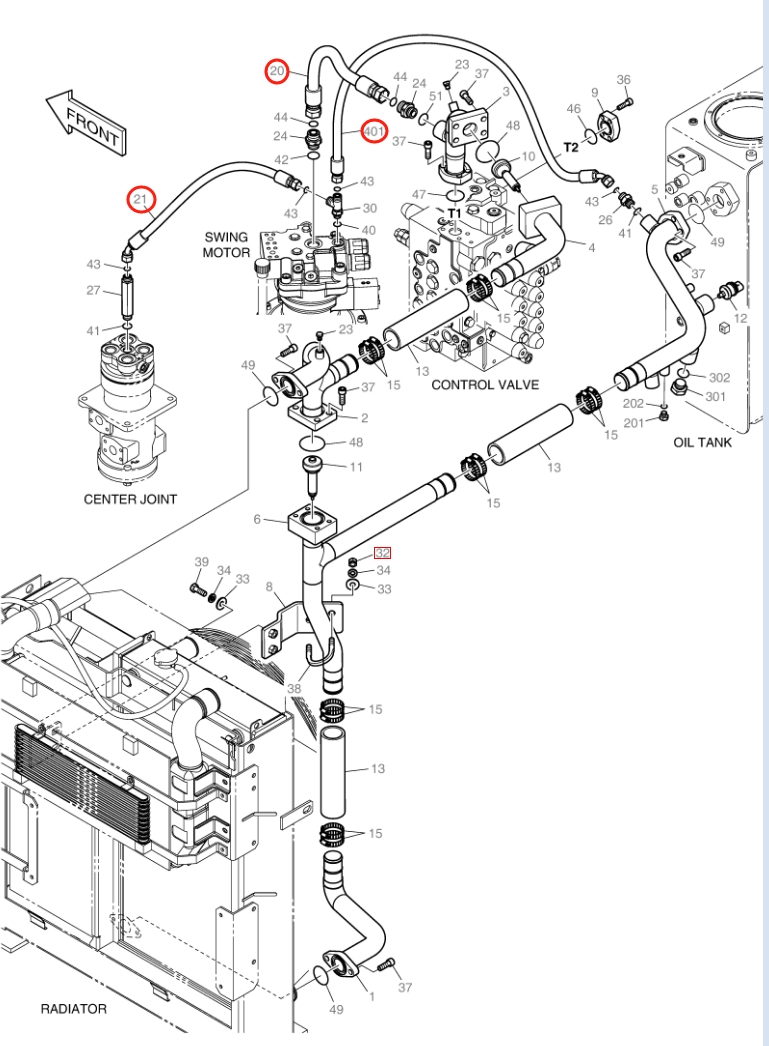

Doosan DX140LC-3 installation diagram showing hydraulic hose DS20111235 at Pipe No. 20 — **Doosan DX140LC-3**Part DS20111235 · Pipe No. 20Open full-size diagram

Repair specifications

Part number: DS20111235
Diagram pipe number: 20
Installation route: 分配阀T1口~回转马达上
Hose specification: DN19;1SN-12;10.5MPa
Finished length: 510 mm
Working pressure: 10.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 23

DS2121010

Installation route: 分配阀PP口~电磁阀P1口

Length: 860 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Hose record

DS2119129

Installation route: 分配阀PB2口~分配阀PA2口

Length: 1,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 201

DS2121002

Installation route: 分配阀PCC口~液压油箱

Length: 240 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Hose record

DS2121010

Installation route: 分配阀PP口~电磁阀P1口

Length: 860 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 103

DS2119129

Installation route: 分配阀PB2口~分配阀PA2口

Length: 1,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Hose record

DS2121002

Installation route: 分配阀PCC口~液压油箱

Length: 240 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Hose record

DS2119114

Installation route: 分配阀PA口~回转马达SH口

Length: 660 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Hose record

DS20111235

Installation route: 分配阀~回转马达上

Length: 510 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
