Individual hose record

4463067 Hose Repair Specifications

Excavator · Hitachi · ZX80 · Solenoid Valve

Finished length550 mm

Locate this hose

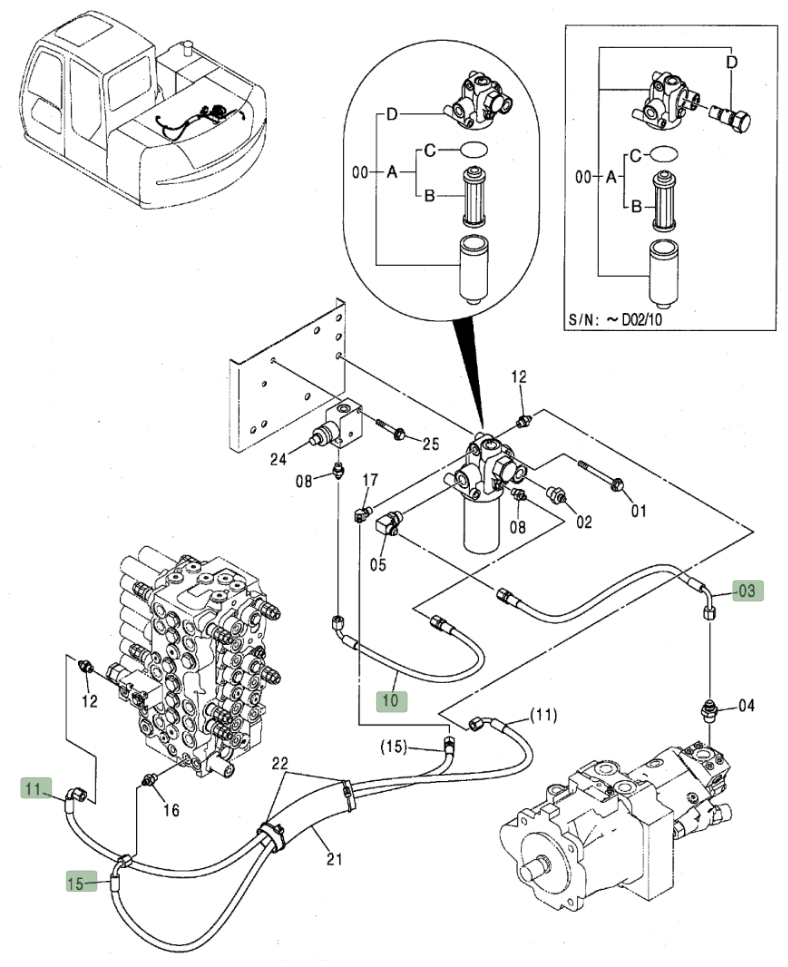

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4463067 before removing the hose.

Hitachi ZX80 installation diagram showing hydraulic hose 4463067 at Pipe No. 10 — Hitachi ZX80Part 4463067 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4463067
Diagram pipe number: 10
Installation route: 电磁阀(液压油箱)~先导滤芯
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 550 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
