Individual hose record

KHJ2092 Hose Repair Specifications

Excavator · Case · CX380C-8 LC · Attachments – Breaker

Finished length1,000 mm

Locate this hose

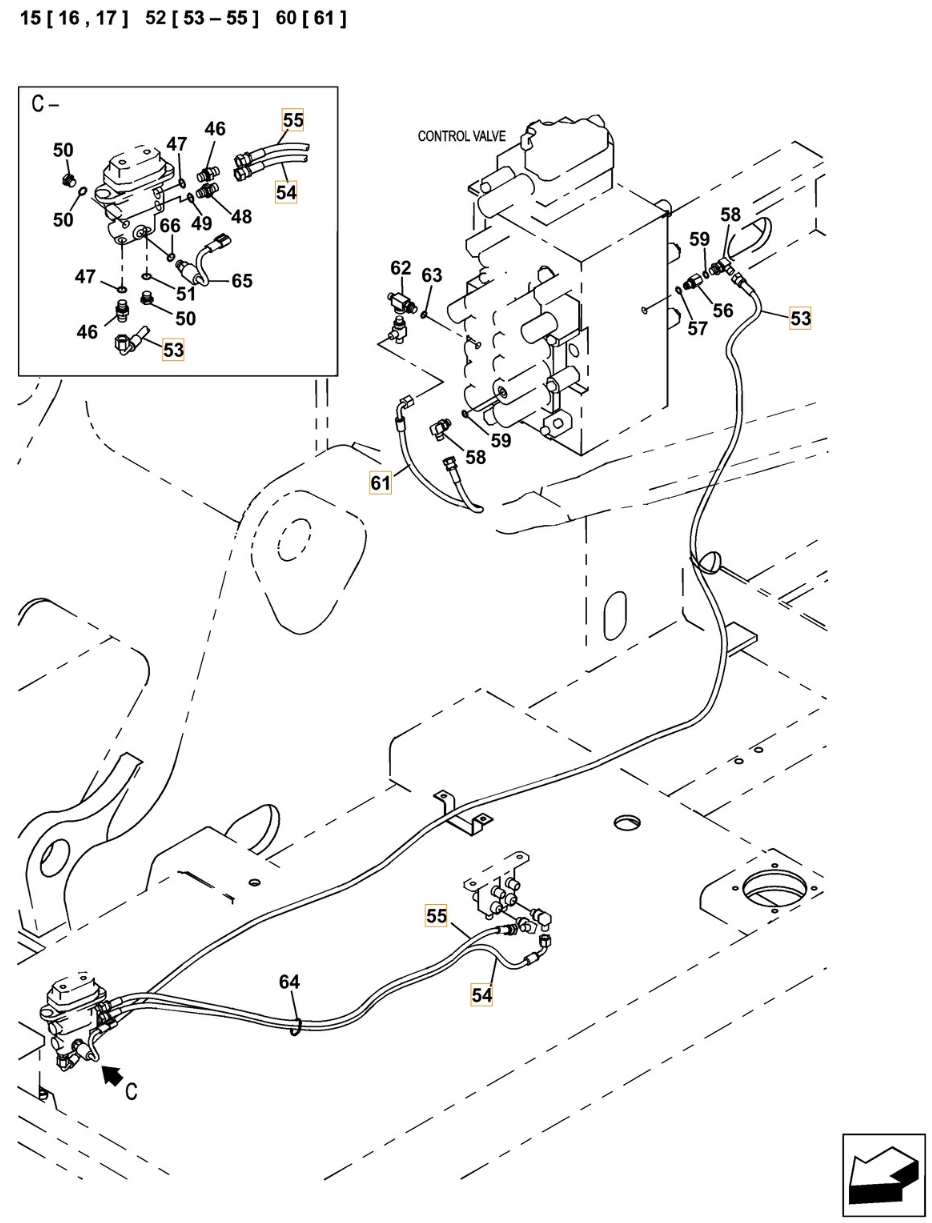

Installation diagram — Pipe No. 54

Locate Pipe No. 54 in the diagram, then confirm part number KHJ2092 before removing the hose.

Case CX380C-8 LC installation diagram showing hydraulic hose KHJ2092 at Pipe No. 54 — **Case CX380C-8 LC**Part KHJ2092 · Pipe No. 54Open full-size diagram

Repair specifications

Part number: KHJ2092
Diagram pipe number: 54
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,000 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
