Individual hose record

730502003011 Hose Repair Specifications

Excavator · Sunward · SWE500ES · Pedal

Finished length3,250 mm

Locate this hose

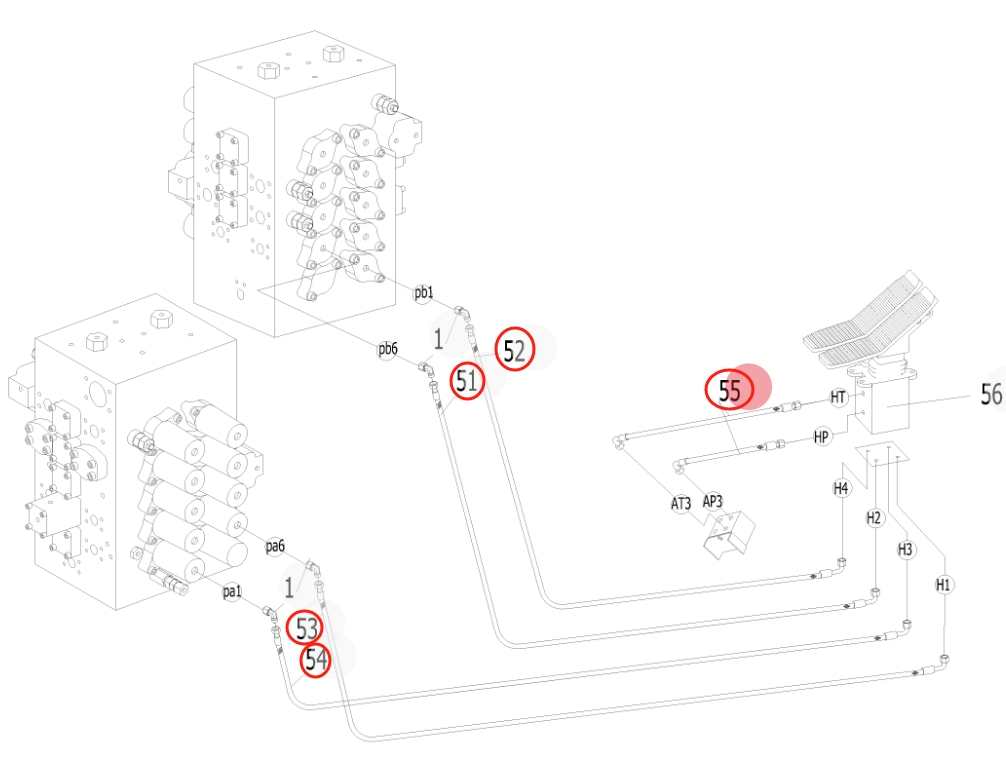

Installation diagram — Pipe No. 54

Locate Pipe No. 54 in the diagram, then confirm part number 730502003011 before removing the hose.

Sunward SWE500ES installation diagram showing hydraulic hose 730502003011 at Pipe No. 54 — Sunward SWE500ESPart 730502003011 · Pipe No. 54Open full-size diagram

Repair specifications

Part number: 730502003011
Diagram pipe number: 54
Installation route: 行走踏板H3~分配阀前PA1
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,250 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 53

730502001985

Installation route: 行走踏板H1~分配阀前PA6

Length: 3,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
