4366791 Hose Repair Specifications

Excavator · Hitachi · EX750-5 · Pedal

Finished length1,000 mm

Locate this hose

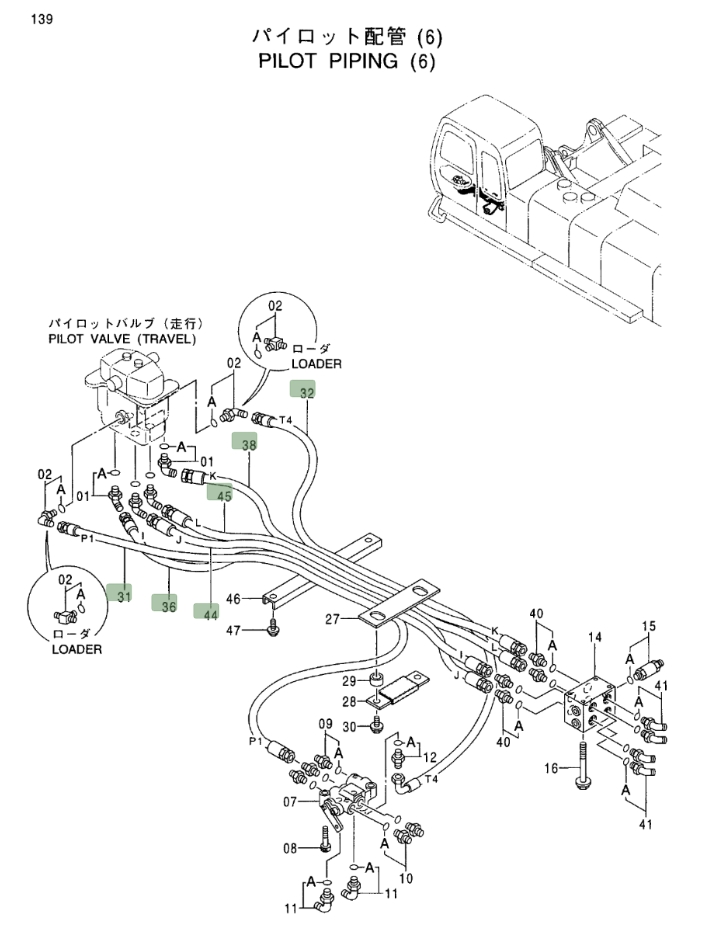

Installation diagram — Pipe No. 45

Locate Pipe No. 45 in the diagram, then confirm part number 4366791 before removing the hose.

Hitachi EX750-5 installation diagram showing hydraulic hose 4366791 at Pipe No. 45 — Hitachi EX750-5Part 4366791 · Pipe No. 45Open full-size diagram

Repair specifications

Part number: 4366791
Diagram pipe number: 45
Installation route: 行走踏板~过渡阀块(行走踏板)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 1,000 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
