Individual hose record

4431842 Hose Repair Specifications

Excavator · Hitachi · ZX200F · Pedal

Finished length3,100 mm

Locate this hose

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4431842 before removing the hose.

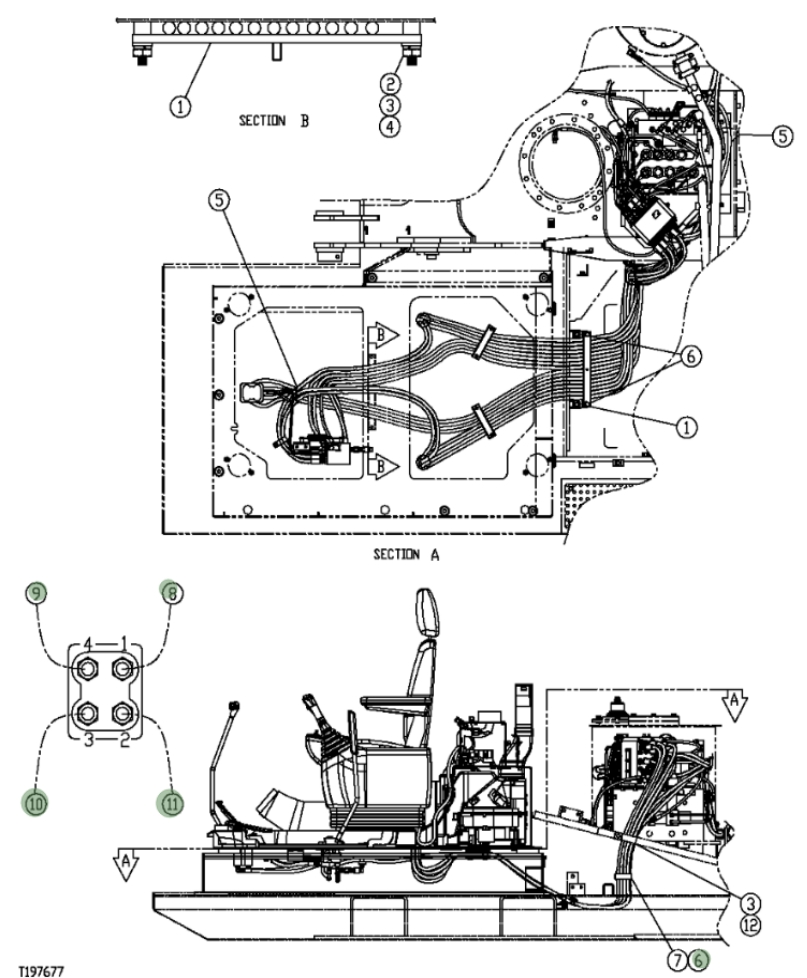

Hitachi ZX200F installation diagram showing hydraulic hose 4431842 at Pipe No. 9 — Hitachi ZX200FPart 4431842 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4431842
Diagram pipe number: 9
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,100 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

4431844

Installation route: 行走踏板~中转接头

Length: 3,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 11

4431843

Installation route: 行走踏板~分配阀

Length: 3,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 10

4607990

Installation route: 行走踏板~中转接头

Length: 3,150 mm
Specification: DN10;1SN-06;18.0MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 10

4431841

Installation route: 行走踏板~中转接头

Length: 3,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 9

4465402

Installation route: 行走踏板~分配阀

Length: 3,100 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
