Individual hose record
4632041 Hose Repair Specifications
Excavator · Hitachi · ZX180LC-6N · Control Valve
Finished length500 mm
Locate this hose

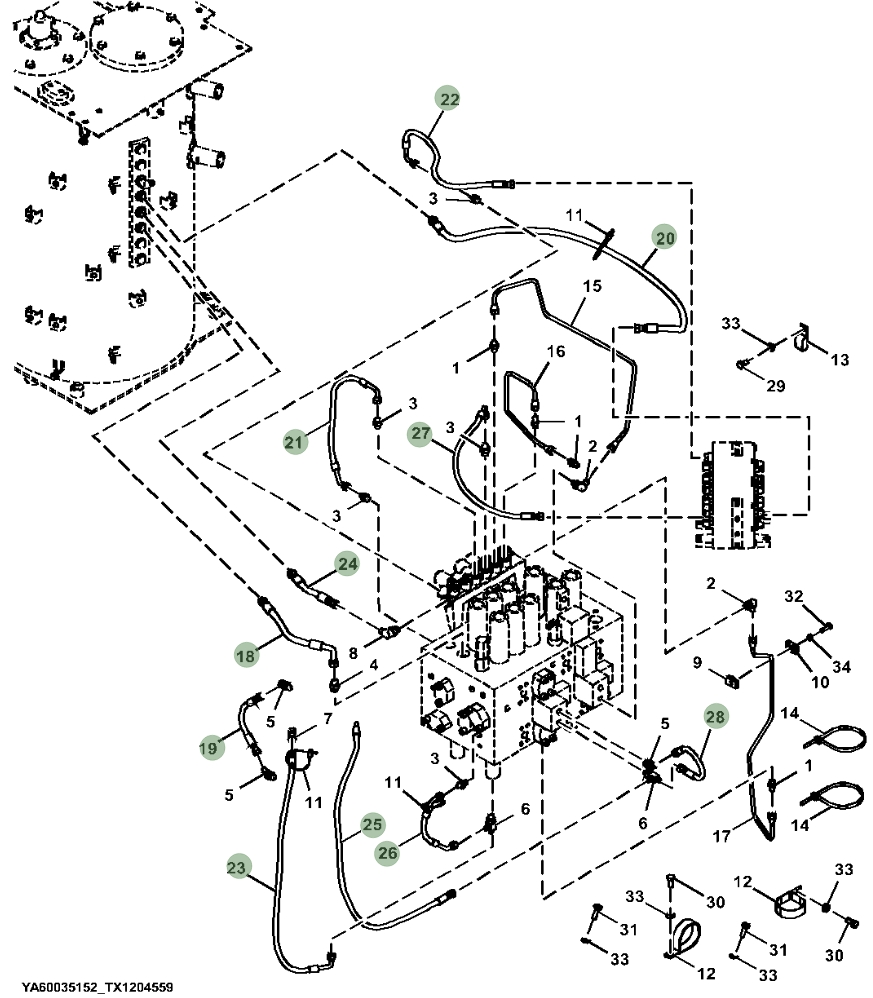

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4632041 before removing the hose.
Repair specifications
- Part number
- 4632041
- Diagram pipe number
- 21
- Installation route
- 分配阀右~电磁阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 45°美制内螺纹74°内锥
- Quantity
- 1
