Individual hose record

4453063 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-5G · Attachments – Breaker

Finished length630 mm

Locate this hose

Installation diagram — Pipe No. 41

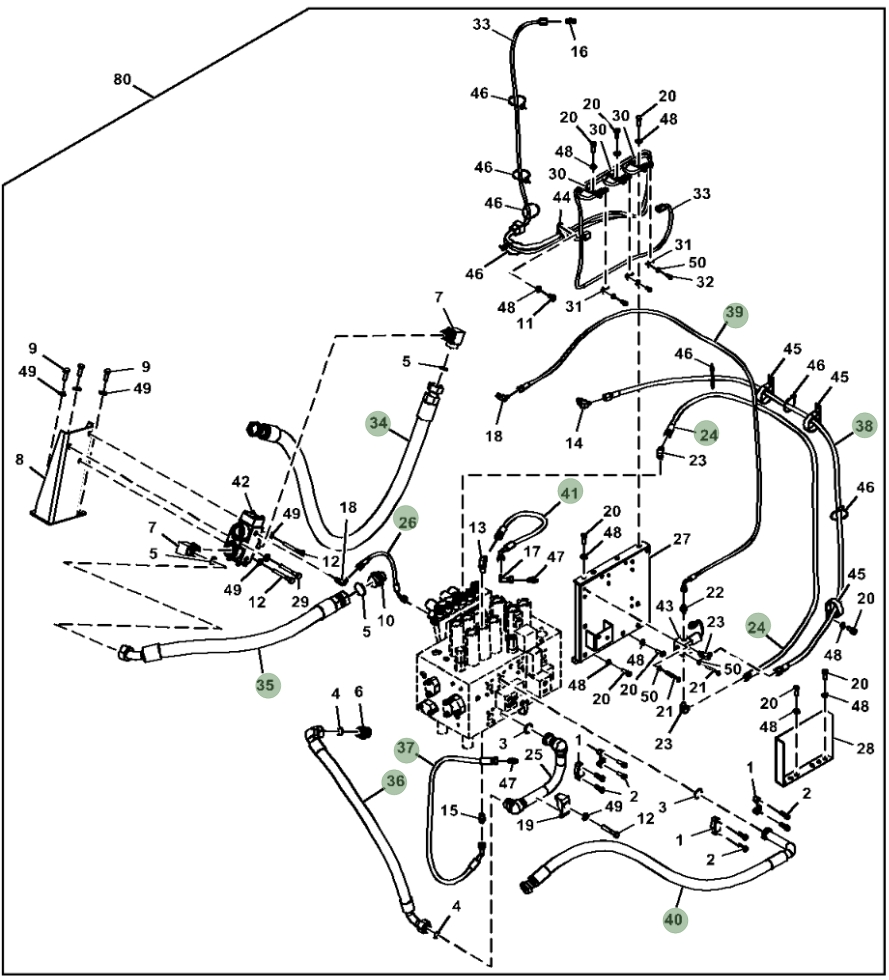

Locate Pipe No. 41 in the diagram, then confirm part number 4453063 before removing the hose.

Hitachi ZX350LC-5G installation diagram showing hydraulic hose 4453063 at Pipe No. 41 — **Hitachi ZX350LC-5G**Part 4453063 · Pipe No. 41Open full-size diagram

Repair specifications

Part number: 4453063
Diagram pipe number: 41
Installation route: 中转接头~分配阀上
Hose specification: DN10;1SN-6;7Mpa
Finished length: 630 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 17

4715621

Installation route: 大臂(前中段)~大臂(后中段)

Length: 1,000 mm
Specification: DN25;4SP-16;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 24

FF107416

Installation route: 电磁阀~电磁阀(破碎器)

Length: 1,750 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 17

4286814

Installation route: 大臂(后中段)~大臂(后段)

Length: 1,050 mm
Specification: DN25;4SP-16;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 18

4650823

Installation route: 大臂(前段)~大臂(后段)

Length: 1,650 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 26

4470393

Installation route: 过渡阀块(破碎器)~电磁阀

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 17

4286814

Installation route: 大臂(前中段)~大臂(后中段)

Length: 1,050 mm
Specification: DN25;4SP-16;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 39

4657419

Installation route: 电磁阀(破碎器)~过渡阀块(破碎器)

Length: 2,600 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 39

FF107418

Installation route: 过渡阀块(破碎器)~电磁阀(破碎器)

Length: 2,200 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
