Individual hose record

KHJ14650 Hose Repair Specifications

Excavator · Case · CX800B · Attachments – Breaker

Finished length650 mm

Locate this hose

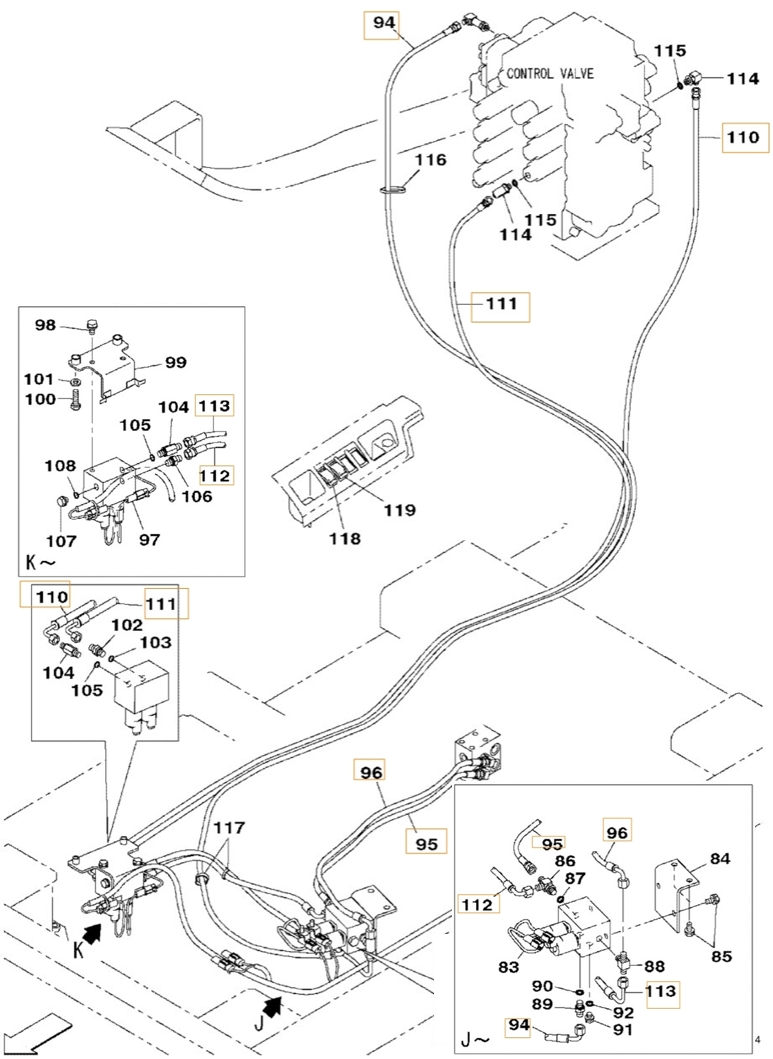

Installation diagram — Pipe No. 95

Locate Pipe No. 95 in the diagram, then confirm part number KHJ14650 before removing the hose.

Case CX800B installation diagram showing hydraulic hose KHJ14650 at Pipe No. 95 — **Case CX800B**Part KHJ14650 · Pipe No. 95Open full-size diagram

Repair specifications

Part number: KHJ14650
Diagram pipe number: 95
Installation route: 电磁阀(破碎器踏板)~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 650 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 82

KHJ2036

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 112

KHJ2180

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 113

KHJ2194

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 96

KHJ2048

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 102

159044A1

Installation route: 分配阀右~过渡阀块(破碎器)

Length: 1,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 106

159019A1

Installation route: 控制阀(破碎器)~过渡阀块

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 81

KHJ2086

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 82

KHJ15180

Installation route: 破碎器踏板~进回油阀

Length: 950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
