Individual hose record
KHJ14900 Hose Repair Specifications
Excavator · Case · CX145C SR · Hydraulic Tank
Finished length2,600 mm
Locate this hose

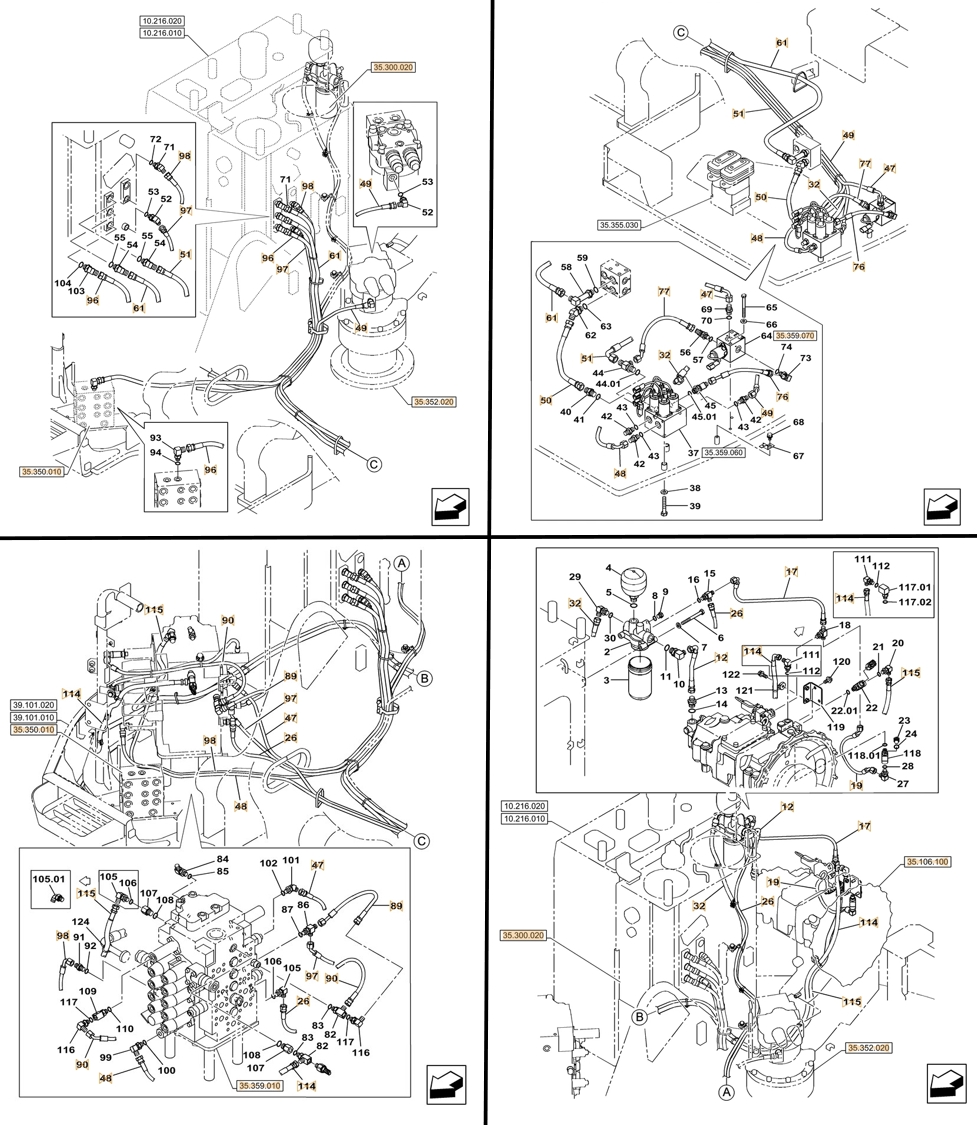

Installation diagram — Pipe No. 51
Locate Pipe No. 51 in the diagram, then confirm part number KHJ14900 before removing the hose.
Repair specifications
- Part number
- KHJ14900
- Diagram pipe number
- 51
- Installation route
- 液压油箱~电磁阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,600 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
