Individual hose record
4425891 Hose Repair Specifications
Excavator · Hitachi · ZX450LC-3 · Control Valve
Finished length1,250 mm
Locate this hose

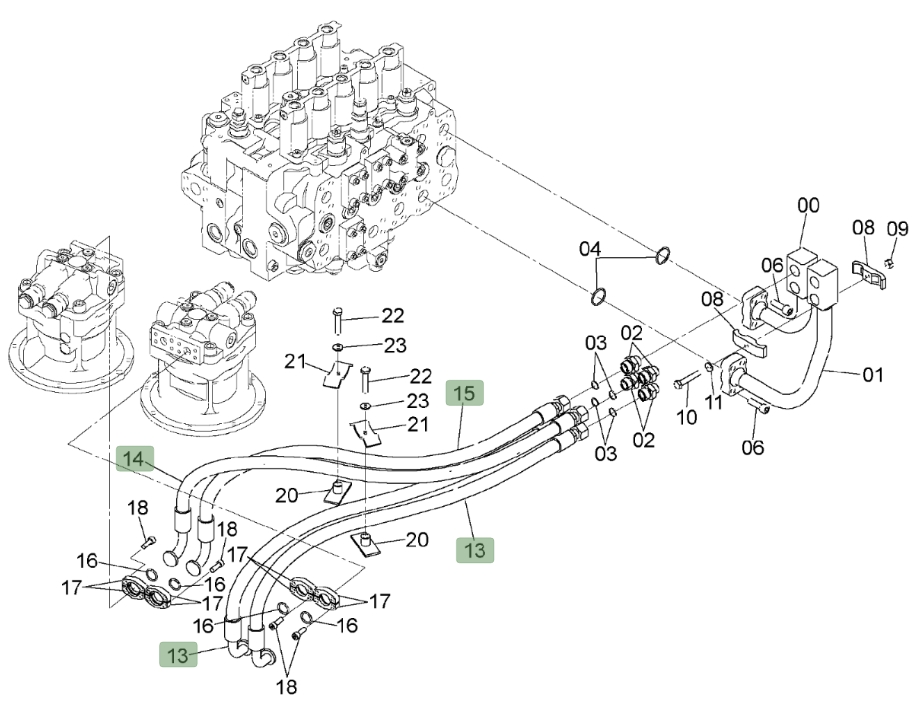

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4425891 before removing the hose.
Repair specifications
- Part number
- 4425891
- Diagram pipe number
- 15
- Installation route
- 分配阀左~回转马达(右)
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 1,250 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 1
