Individual hose record
9265955 Hose Repair Specifications
Excavator · Hitachi · ZX220W-3 · Swivel Joint
Finished length650 mm
Locate this hose

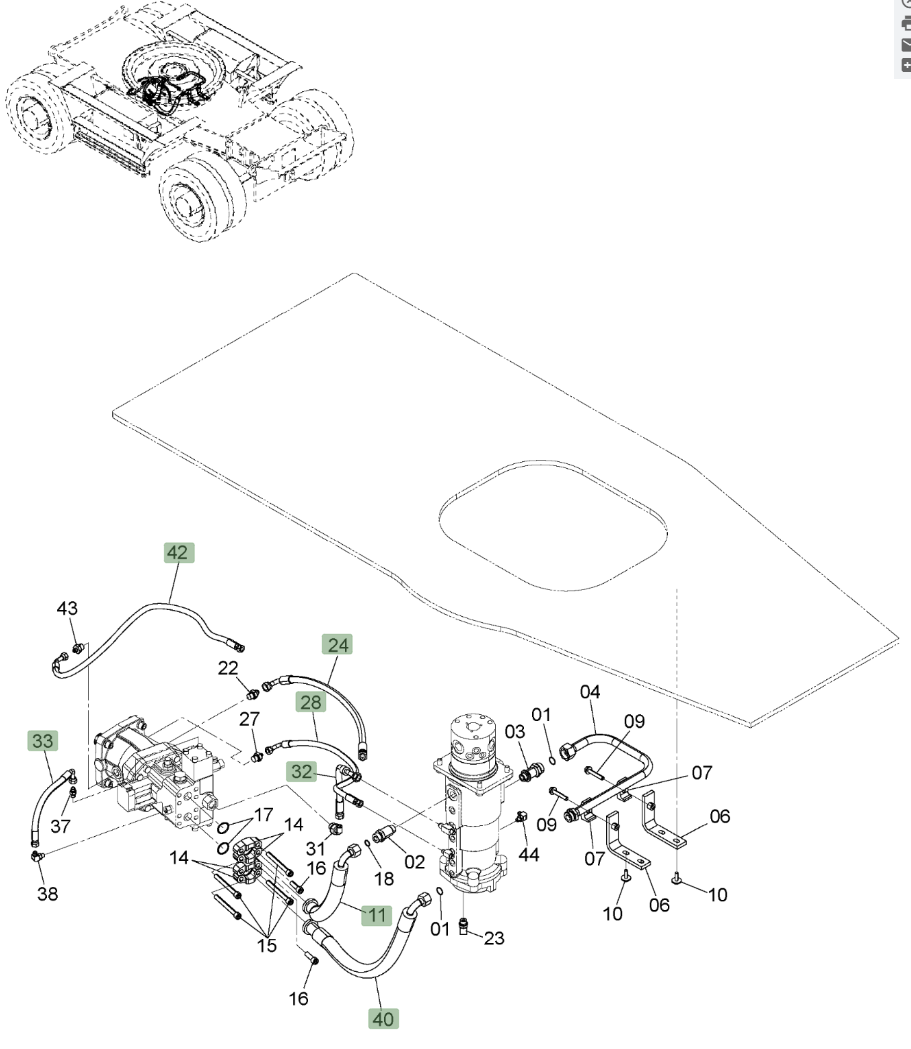

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 9265955 before removing the hose.
Repair specifications
- Part number
- 9265955
- Diagram pipe number
- 24
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
