- Length
- 960 mm
- Specification
- DN10;1SN-06;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4356518 Hose Repair Specifications
Excavator · Hitachi · ZX450LC-3 · Attachments – Lock Valve
Finished length850 mm
Locate this hose

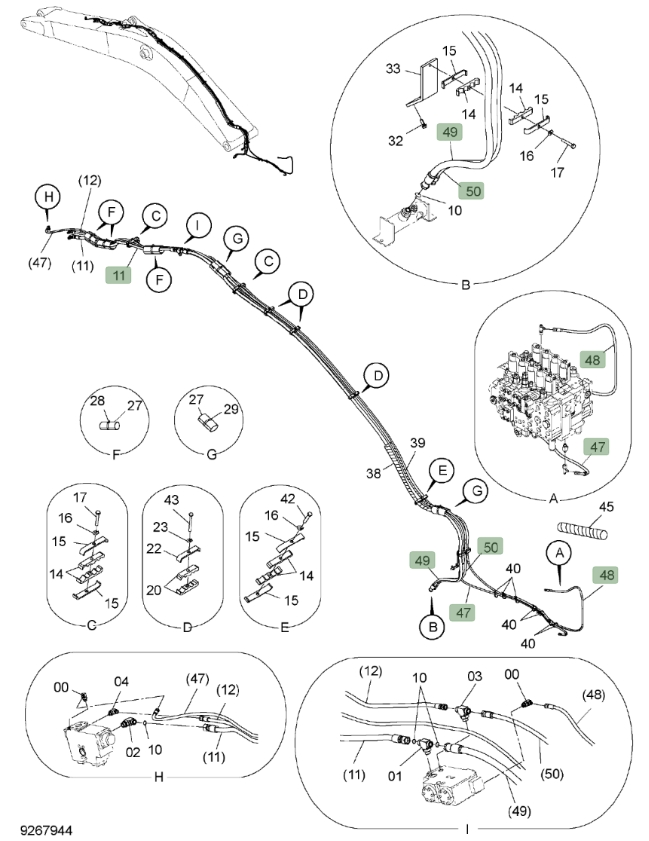

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4356518 before removing the hose.
Repair specifications
- Part number
- 4356518
- Diagram pipe number
- 11
- Installation route
- 前小臂油缸锁止阀~后小臂油缸锁止阀
- Hose specification
- DN12;4SP-8;34.5Mpa
- Finished length
- 850 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
