Individual hose record

4728136 Hose Repair Specifications

Excavator · Hitachi · ZX230W-5N · Swing Motor

Finished length2,200 mm

Locate this hose

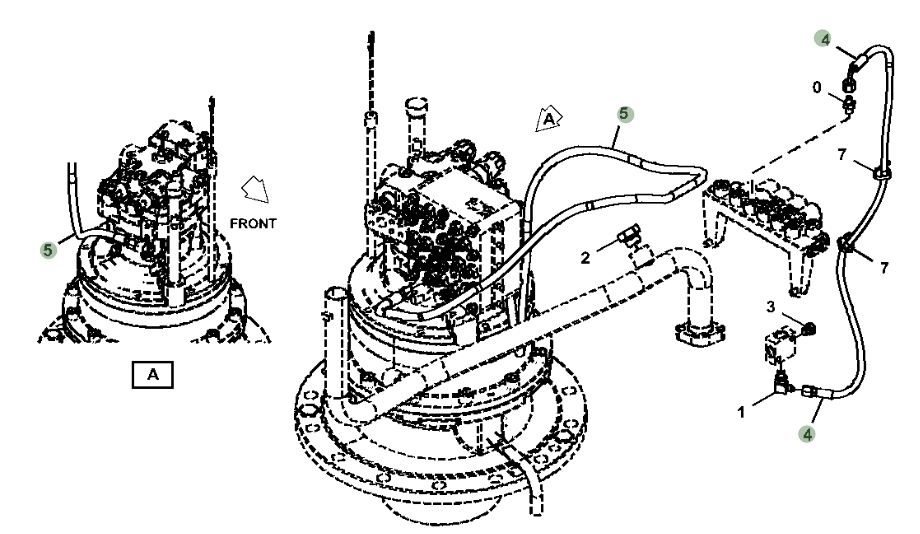

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 4728136 before removing the hose.

Hitachi ZX230W-5N installation diagram showing hydraulic hose 4728136 at Pipe No. 5 — Hitachi ZX230W-5NPart 4728136 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 4728136
Diagram pipe number: 5
Installation route: 回转马达~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 2,200 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
