Individual hose record
4283566 Hose Repair Specifications
Excavator · Hitachi · EX330LC-5 · Attachments – Breaker
Finished length3,100 mm
Locate this hose

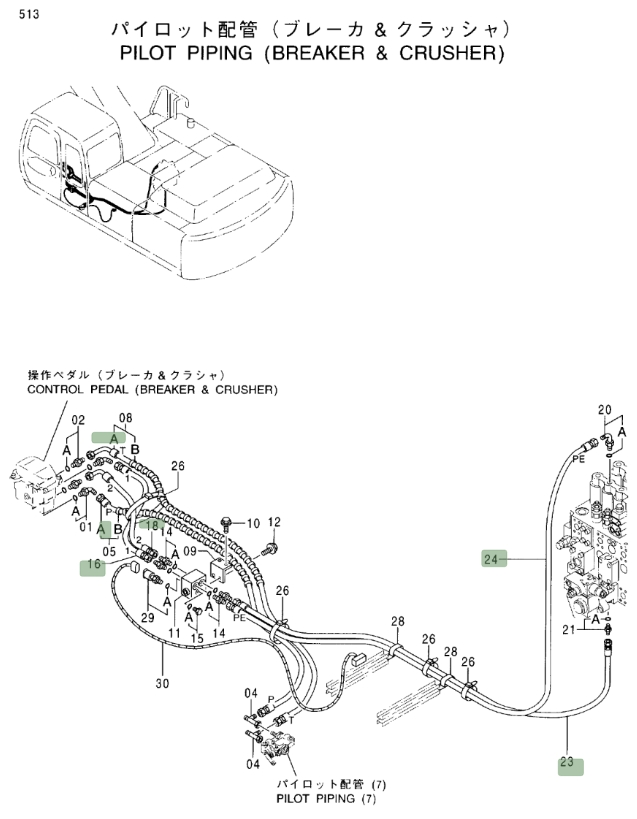

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4283566 before removing the hose.
Repair specifications
- Part number
- 4283566
- Diagram pipe number
- 24
- Installation route
- 分配阀上~过渡阀块(破碎器踏板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,100 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
