Individual hose record
730501003078 Hose Repair Specifications
Excavator · Sunward · SWE235E-3H · Boom Assembly
Finished length1,275 mm
Locate this hose

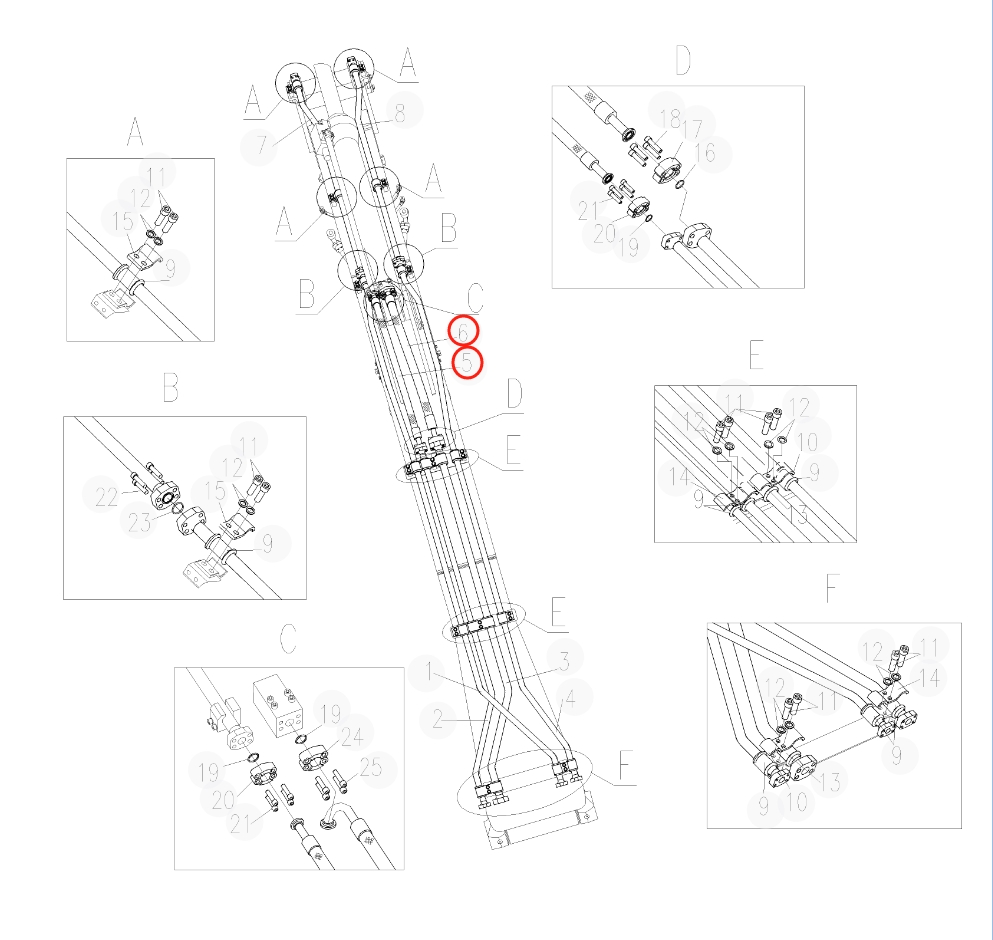

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 730501003078 before removing the hose.
Repair specifications
- Part number
- 730501003078
- Diagram pipe number
- 6
- Installation route
- Arm cylinder — rightOriginal Chinese: 小臂油缸右
- Hose specification
- DN32;6SH-20;35MPa
- Finished length
- 1,275 mm
- Working pressure
- 35 MPa
- Left fitting
- 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 1
