Individual hose record
730502000092 Hose Repair Specifications
Excavator · Sunward · SWE60E-3 · Attachments – Breaker
Finished length350 mm
Locate this hose

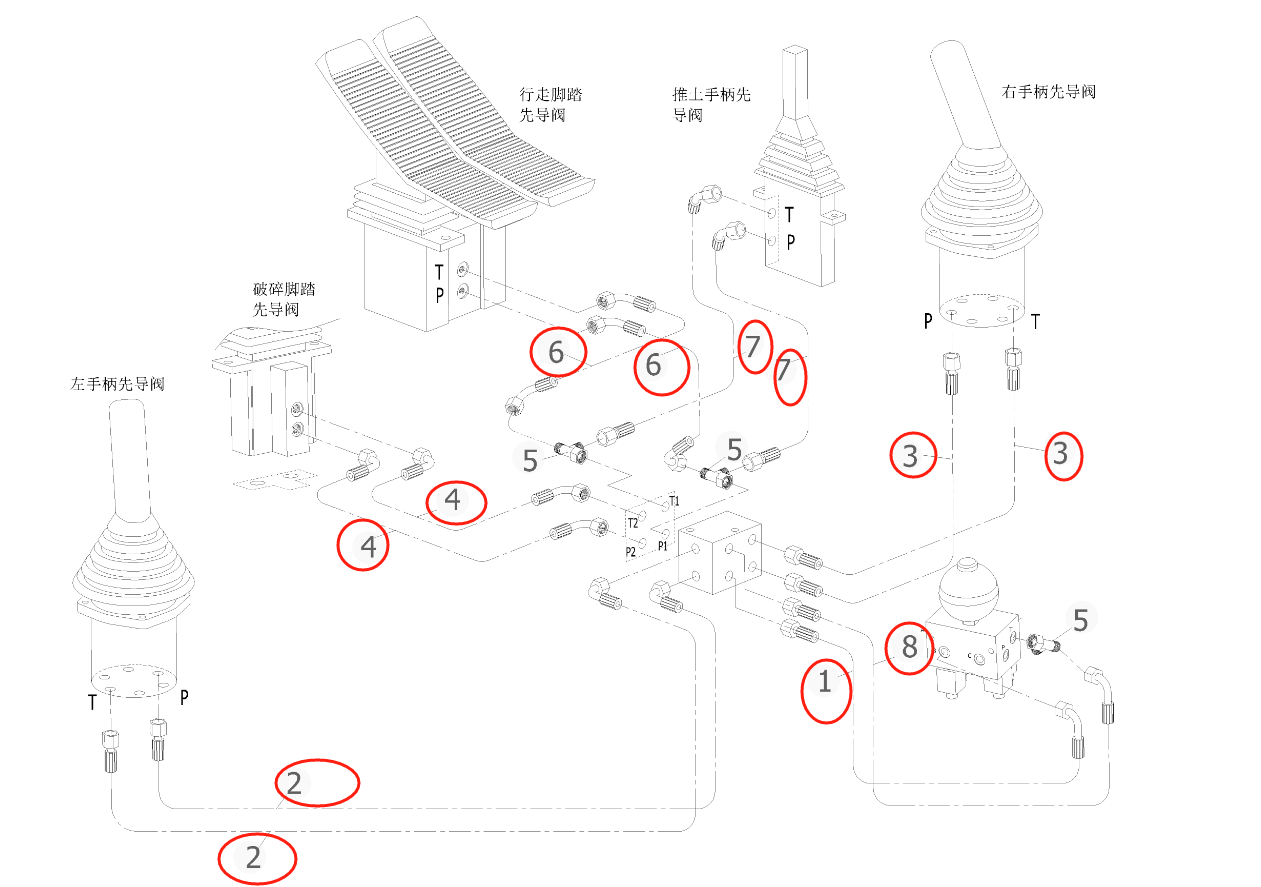

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 730502000092 before removing the hose.
Repair specifications
- Part number
- 730502000092
- Diagram pipe number
- 4
- Installation route
- 破碎器踏板~进回油阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 350 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 2
