Individual hose record

2184-1045D163 Hose Repair Specifications

Excavator · Doosan · DX80R · Attachments – Lock Valve

Finished length1,330 mm

Locate this hose

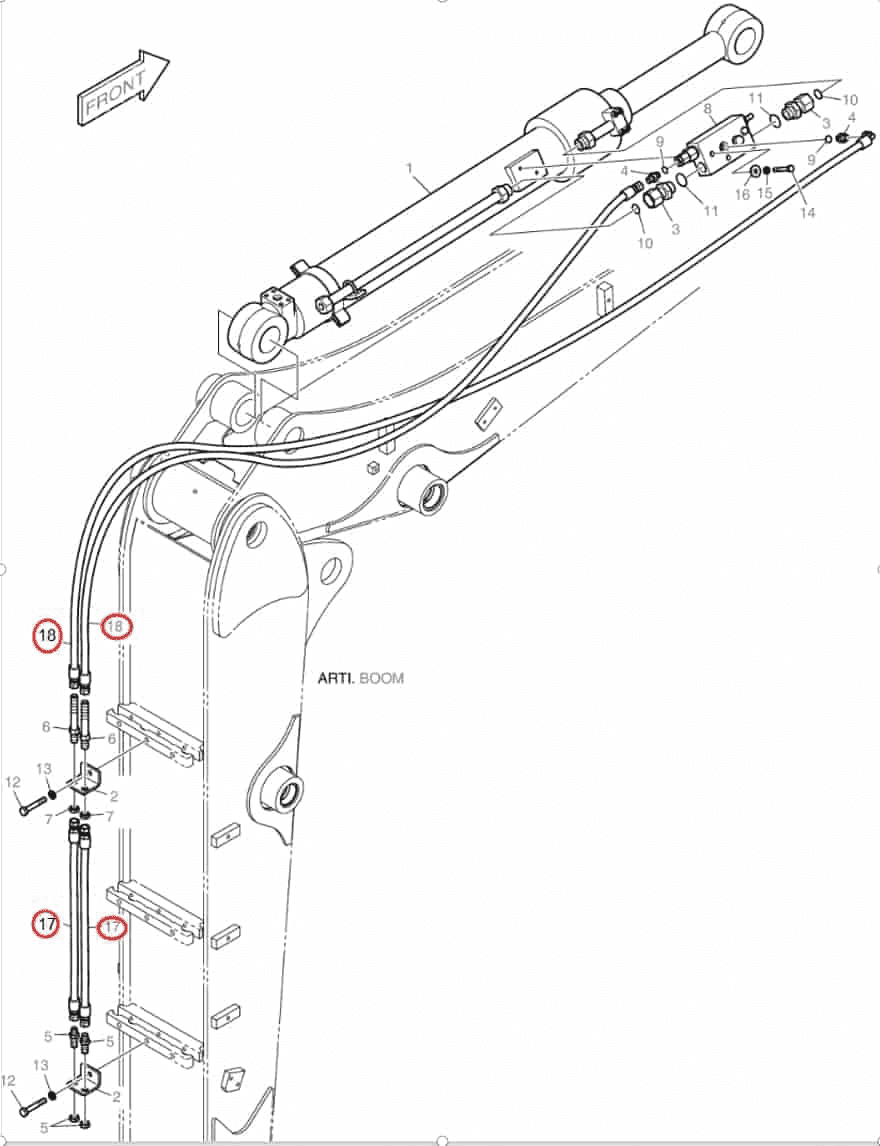

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 2184-1045D163 before removing the hose.

Doosan DX80R installation diagram showing hydraulic hose 2184-1045D163 at Pipe No. 18 — **Doosan DX80R**Part 2184-1045D163 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 2184-1045D163
Diagram pipe number: 18
Installation route: 小臂油缸锁止阀~接线板(小臂油缸锁止阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,330 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
