Individual hose record

730502002465 Hose Repair Specifications

Excavator · Sunward · SWE215E-3H · Hydraulic Pump

Finished length3,050 mm

Locate this hose

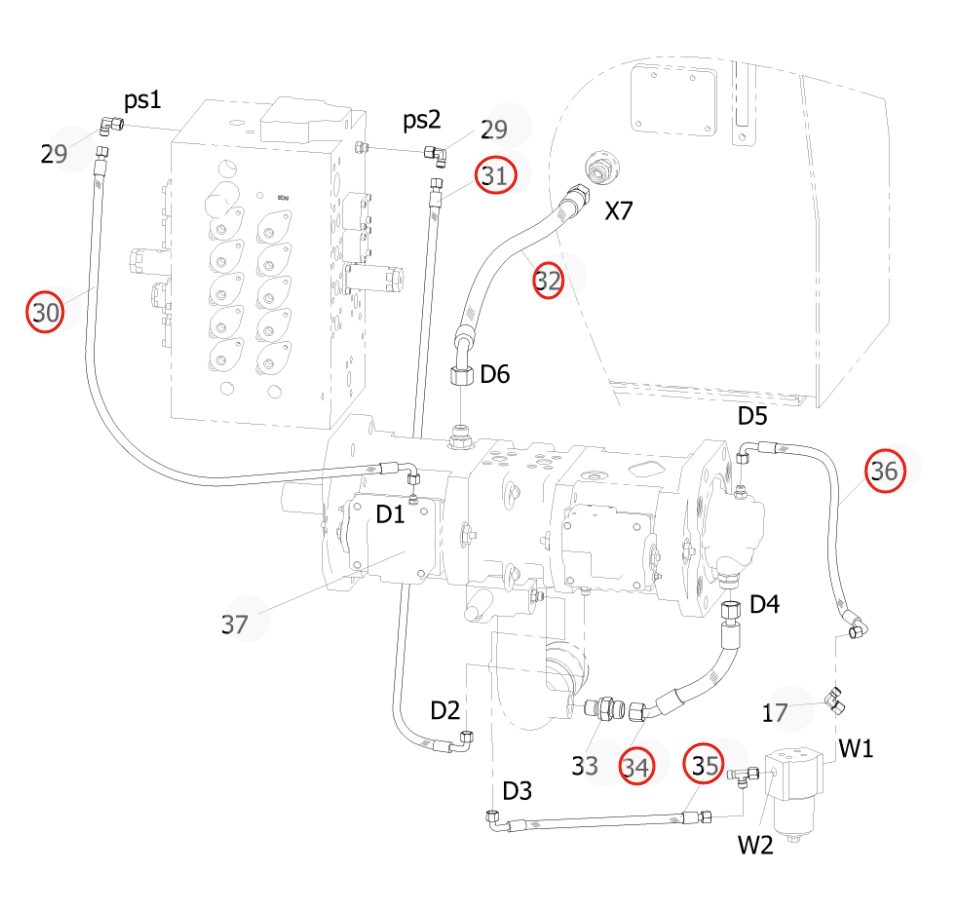

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 730502002465 before removing the hose.

Sunward SWE215E-3H installation diagram showing hydraulic hose 730502002465 at Pipe No. 31 — Sunward SWE215E-3HPart 730502002465 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: 730502002465
Diagram pipe number: 31
Installation route: 液压泵下D2~分配阀PS2
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,050 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
