Individual hose record
4207384 Hose Repair Specifications
Excavator · Hitachi · EX160WD · Attachments
Finished length1,050 mm
Locate this hose

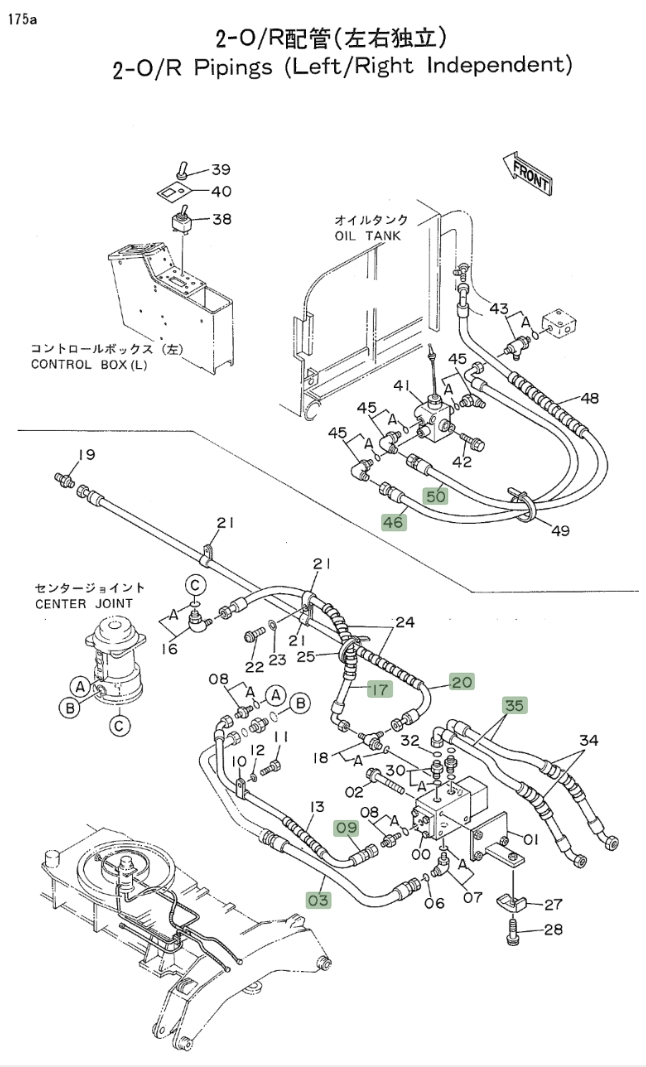

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4207384 before removing the hose.
Repair specifications
- Part number
- 4207384
- Diagram pipe number
- 9
- Installation route
- 回转接头~控制阀(支腿架)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,050 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
