Individual hose record
4645516 Hose Repair Specifications
Excavator · Hitachi · ZX160LC-6N · Attachments – Breaker
Finished length1,650 mm
Locate this hose

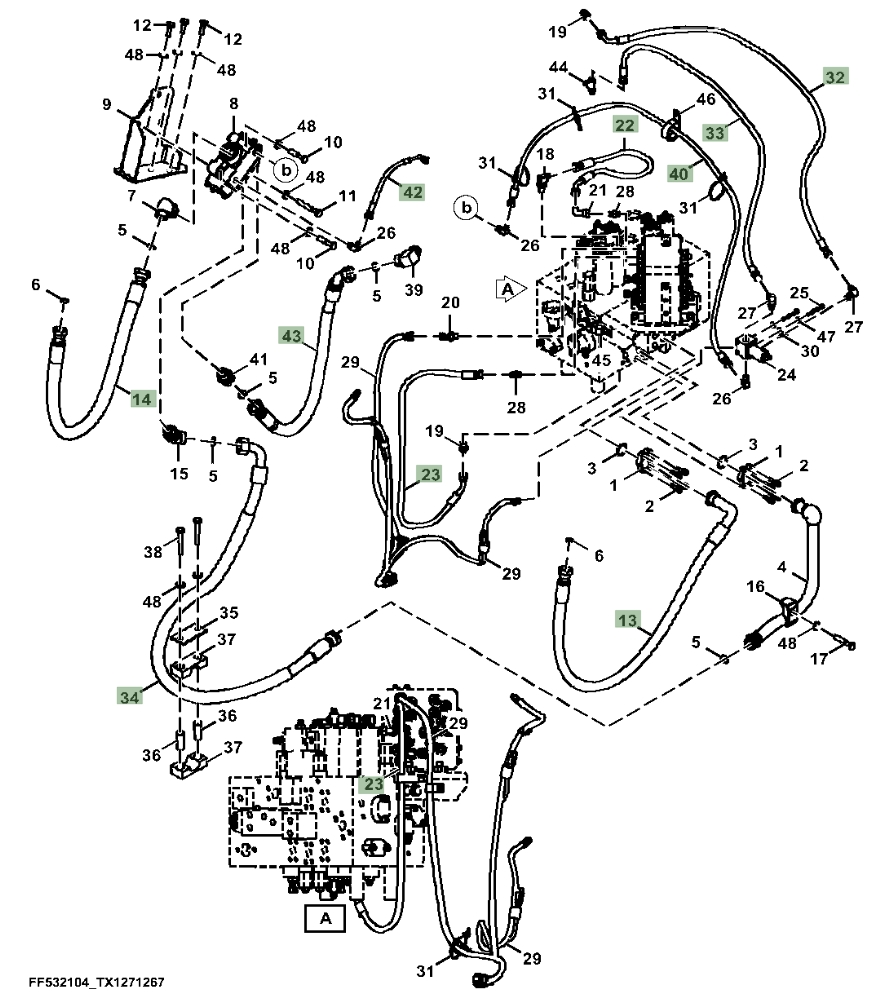

Installation diagram — Pipe No. 40
Locate Pipe No. 40 in the diagram, then confirm part number 4645516 before removing the hose.
Repair specifications
- Part number
- 4645516
- Diagram pipe number
- 40
- Installation route
- 电磁阀(破碎器)~过渡阀块(破碎器)
- Hose specification
- DN6;1SN-04;7Mpa
- Finished length
- 1,650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
