Individual hose record

4313438 Hose Repair Specifications

Excavator · Hitachi · ZX180LC-6N · Hydraulic Pump

Finished length1,900 mm

Locate this hose

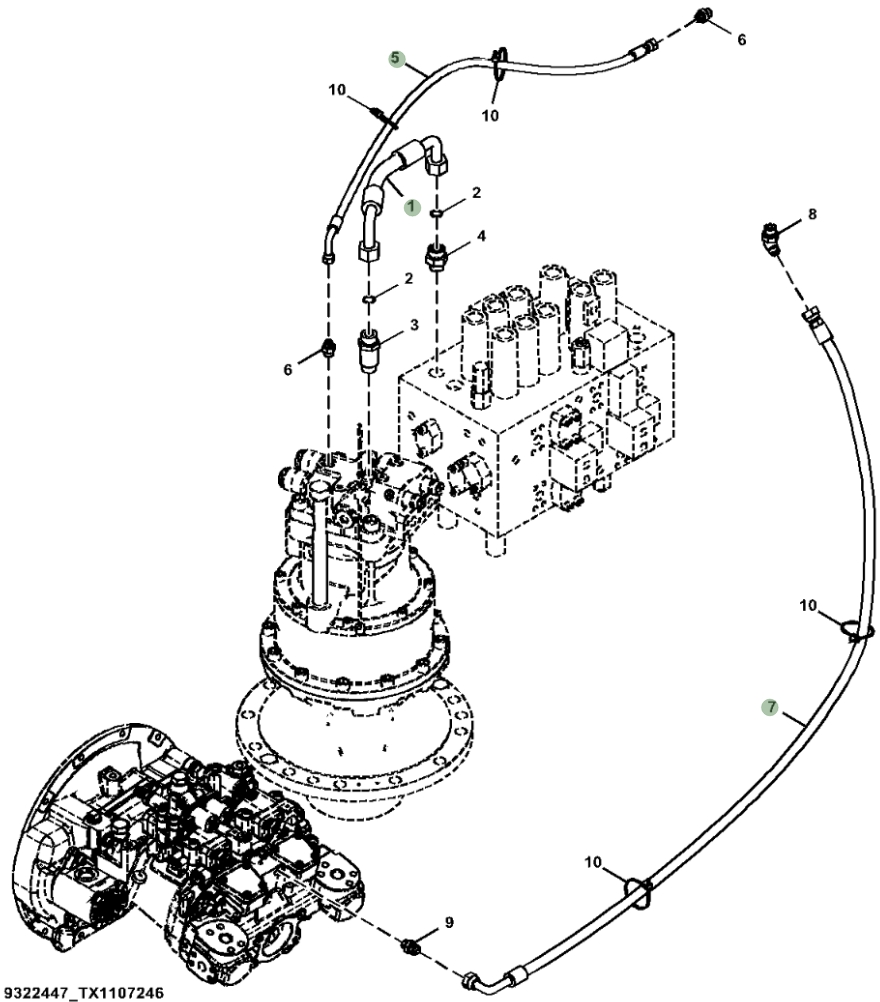

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4313438 before removing the hose.

Hitachi ZX180LC-6N installation diagram showing hydraulic hose 4313438 at Pipe No. 7 — Hitachi ZX180LC-6NPart 4313438 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4313438
Diagram pipe number: 7
Installation route: 液压泵~
Hose specification: DN12;1SN-8;7Mpa
Finished length: 1,900 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
