4628916 Hose Repair Specifications

Excavator · Hitachi · ZX290LC-5N · Boom Assembly

Finished length850 mm

Locate this hose

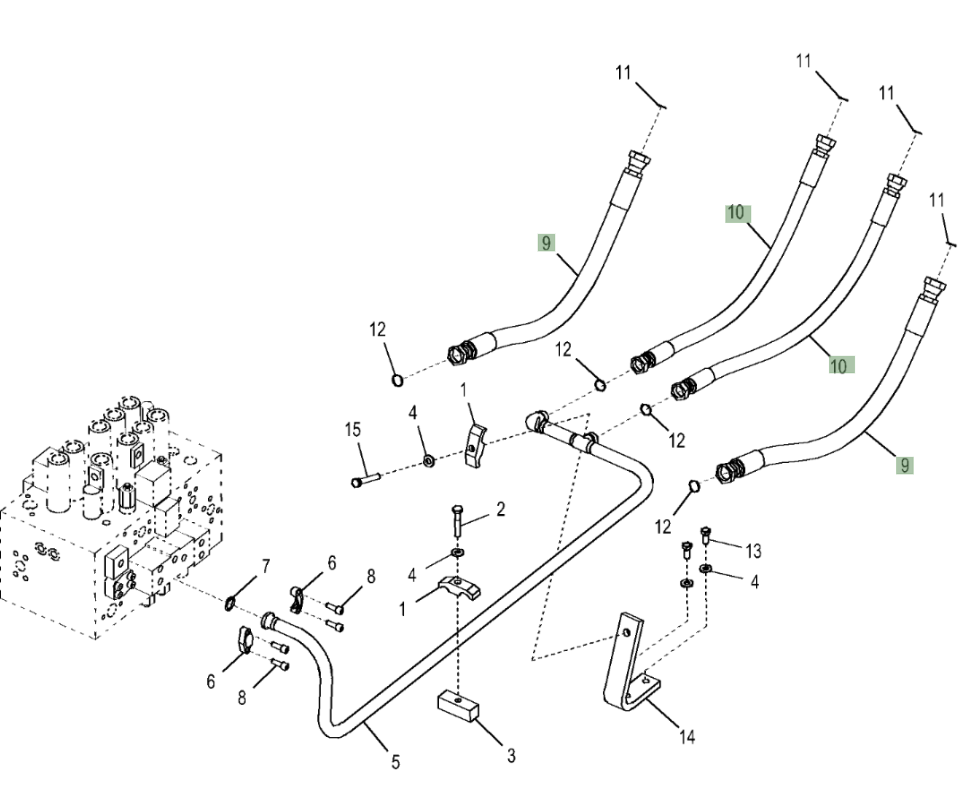

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4628916 before removing the hose.

Hitachi ZX290LC-5N installation diagram showing hydraulic hose 4628916 at Pipe No. 9 — **Hitachi ZX290LC-5N**Part 4628916 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4628916
Diagram pipe number: 9
Installation route: 大臂油缸左1/左4
Hose specification: DN25;4SH-16;38.8MPa
Finished length: 850 mm
Working pressure: 38.8 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system
