Individual hose record

KHJ2142 Hose Repair Specifications

Excavator · Case · CX250C · Control Valve

Finished length500 mm

Locate this hose

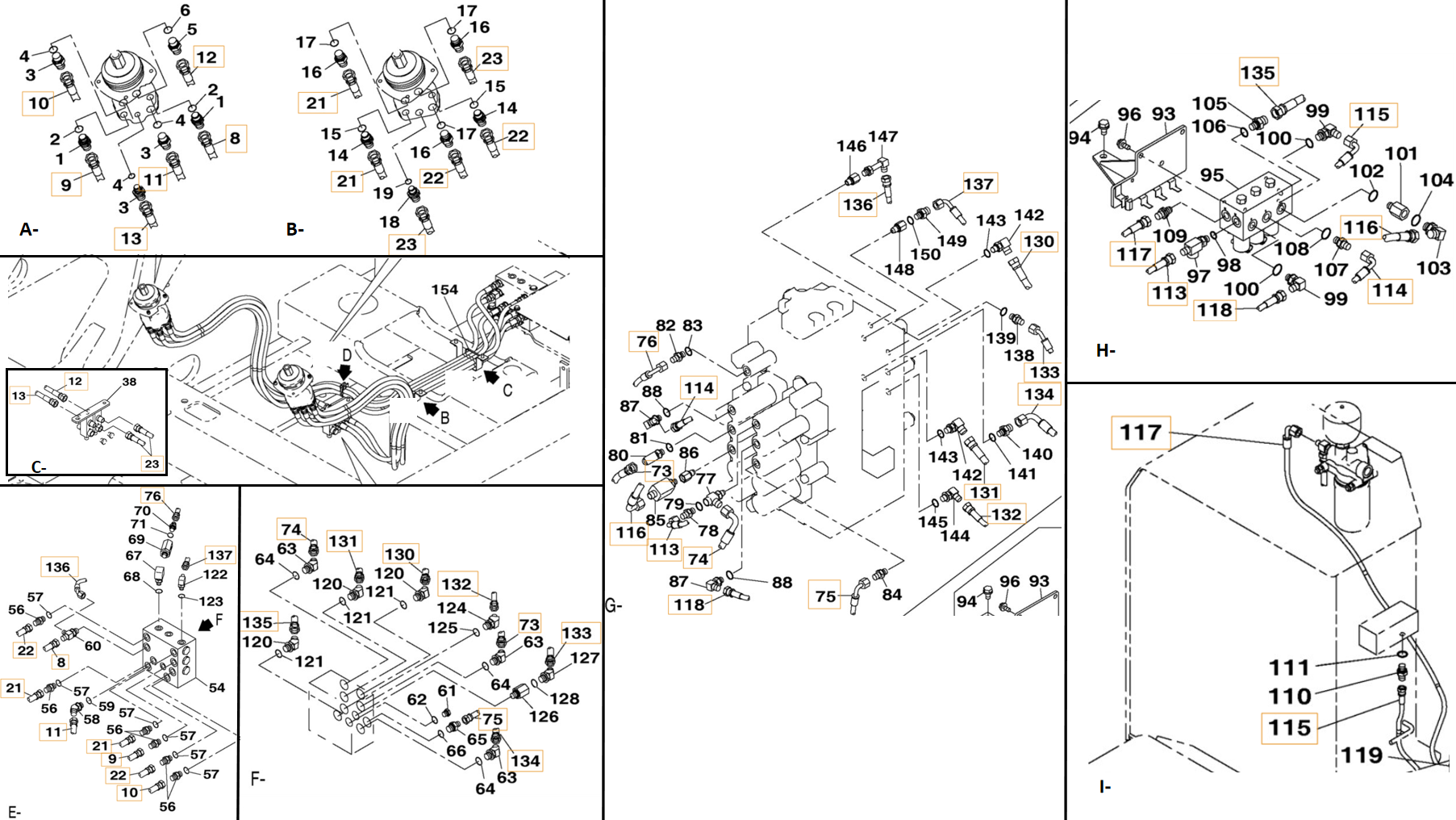

Installation diagram — Pipe No. G118-H118

Locate Pipe No. G118-H118 in the diagram, then confirm part number KHJ2142 before removing the hose.

Case CX250C installation diagram showing hydraulic hose KHJ2142 at Pipe No. G118-H118 — **Case CX250C**Part KHJ2142 · Pipe No. G118-H118Open full-size diagram

Repair specifications

Part number: KHJ2142
Diagram pipe number: G118-H118
Installation route: 分配阀前左~电磁阀(分配阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
