Individual hose record

4625780 Hose Repair Specifications

Excavator · Hitachi · ZX270LC · Engine Oil Lines

Finished length1,350 mm

Locate this hose

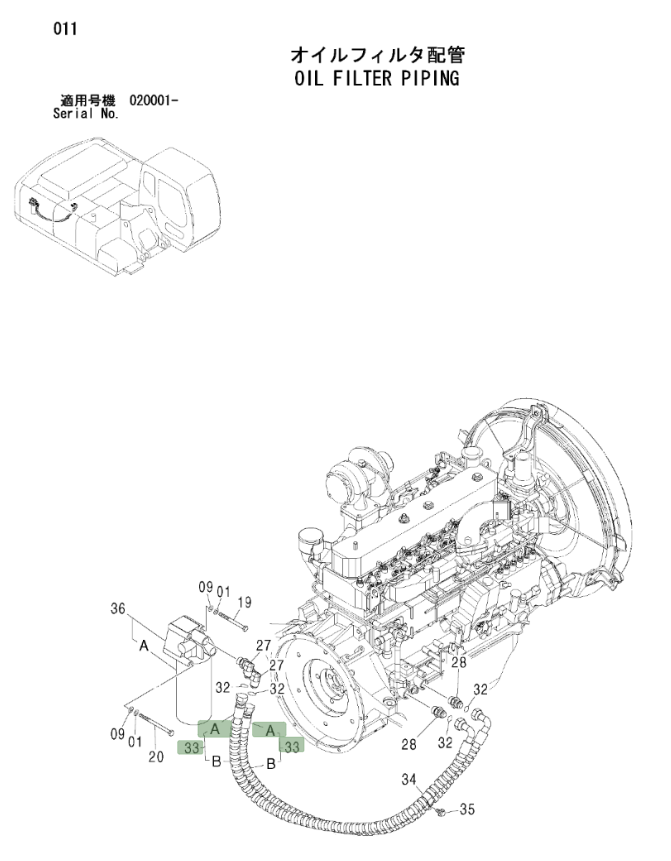

Installation diagram — Pipe No. 33A

Locate Pipe No. 33A in the diagram, then confirm part number 4625780 before removing the hose.

Part number: 4625780
Diagram pipe number: 33A
Installation route: 机油管
Hose specification: DN19;2SN-12;21.5MPa
Finished length: 1,350 mm
Working pressure: 21.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 33A

Installation route: 机油管

Length: 1,350 mm
Specification: DN16;1SN-10;13Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 33

Installation route: 机油管

Length: 1,350 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
