730501002121 Hose Repair Specifications

Excavator · Sunward · SWE235E-3 · Boom Assembly

Finished length1,250 mm

Locate this hose

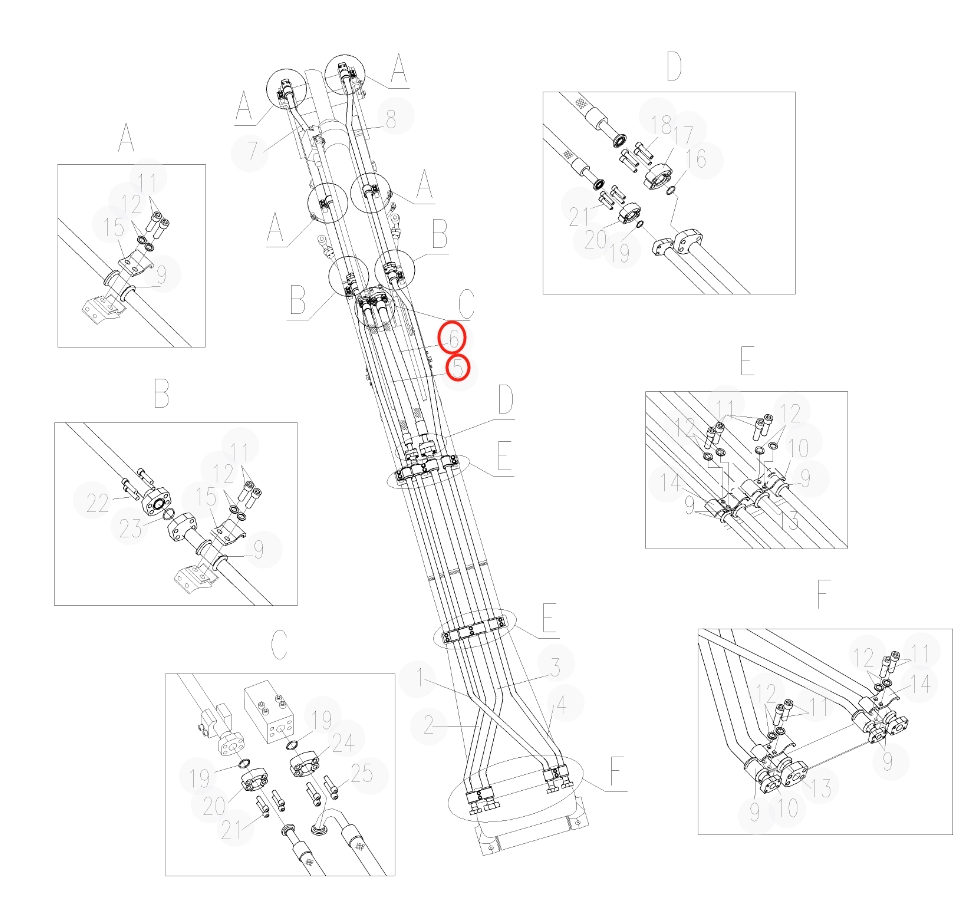

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 730501002121 before removing the hose.

Sunward SWE235E-3 installation diagram showing hydraulic hose 730501002121 at Pipe No. 5 — Sunward SWE235E-3Part 730501002121 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 730501002121
Diagram pipe number: 5
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN25;6SH-16;35MPa
Finished length: 1,250 mm
Working pressure: 35 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

730501003078

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 1,275 mm
Specification: DN32;6SH-20;35MPa
Left fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
