Individual hose record
73050200A056 Hose Repair Specifications
Excavator · Sunward · SWE150E · Boom Assembly
Finished length940 mm
Locate this hose

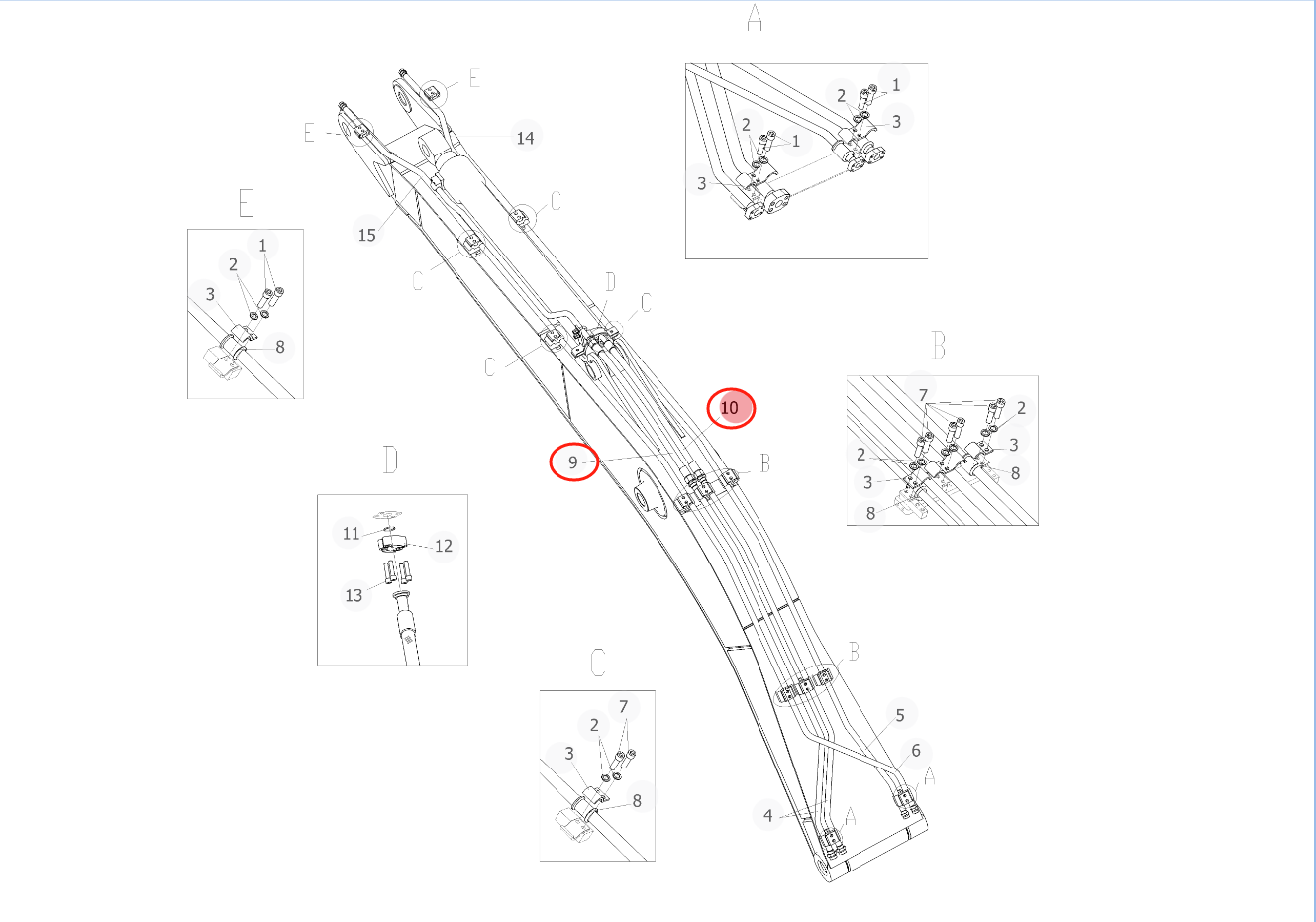

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 73050200A056 before removing the hose.
Repair specifications
- Part number
- 73050200A056
- Diagram pipe number
- 10
- Installation route
- Arm cylinder — rightOriginal Chinese: 小臂油缸右
- Hose specification
- DN20;6SH-12;35MPa
- Finished length
- 940 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
- Quantity
- 1
