Individual hose record

KAJ2467 Hose Repair Specifications

Excavator · Case · CX500C · Control Valve

Finished length850 mm

Locate this hose

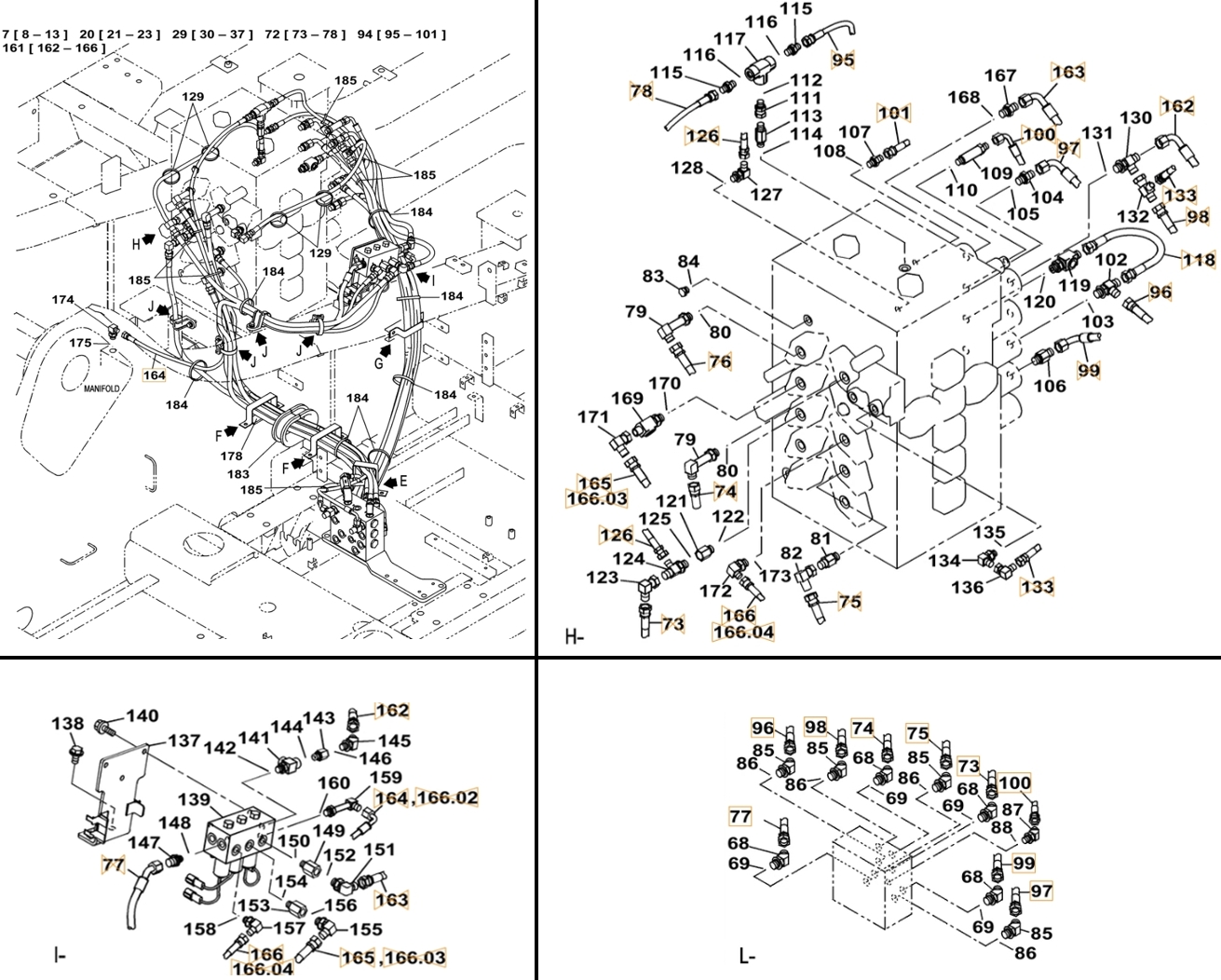

Installation diagram — Pipe No. 163

Locate Pipe No. 163 in the diagram, then confirm part number KAJ2467 before removing the hose.

Part number: KAJ2467
Diagram pipe number: 163
Installation route: 分配阀后右~电磁阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 850 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 80

Installation route: 分配阀前左~回转马达过渡阀块

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 162

Installation route: 分配阀后左~电磁阀

Length: 750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
