Individual hose record

4428819 Hose Repair Specifications

Excavator · Hitachi · EX27U · Boom Assembly

Finished length900 mm

Locate this hose

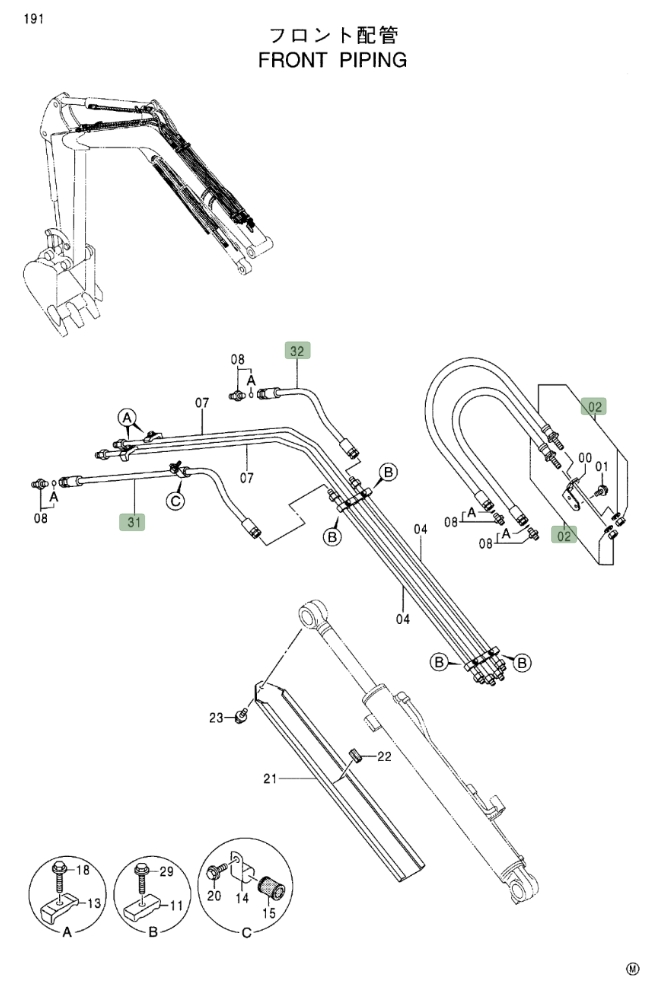

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4428819 before removing the hose.

Hitachi EX27U installation diagram showing hydraulic hose 4428819 at Pipe No. 2 — Hitachi EX27UPart 4428819 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4428819
Diagram pipe number: 2
Installation route: 大臂油缸
Hose specification: DN10;2SN-6;20.5MPa
Finished length: 900 mm
Working pressure: 20.5 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制外螺纹30°内锥
Quantity: 2
