Individual hose record
4630939 Hose Repair Specifications
Excavator · Hitachi · ZX300LC-6N · Control Lever
Finished length360 mm
Locate this hose

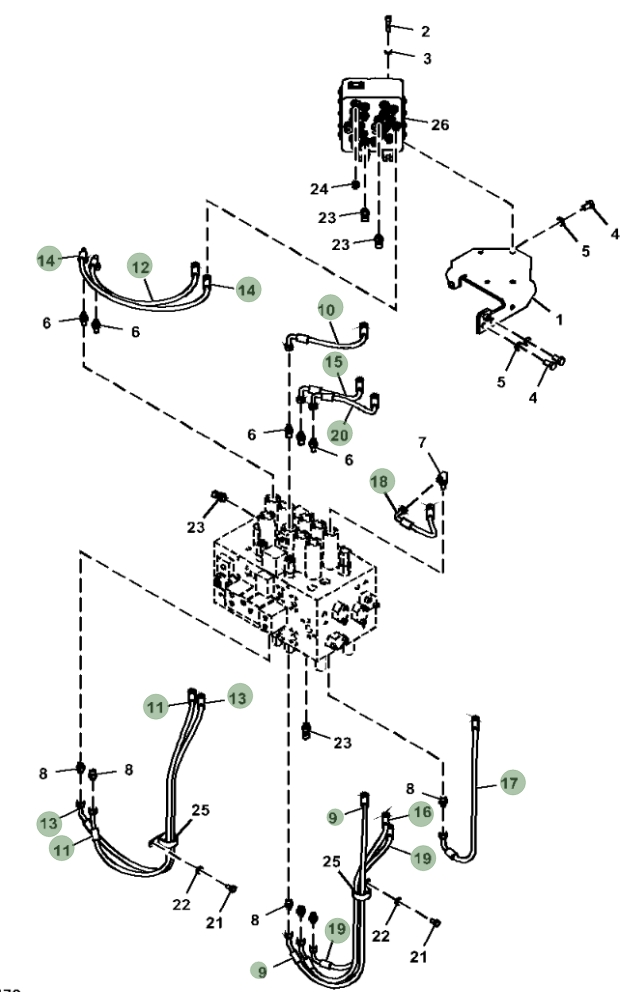

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 4630939 before removing the hose.
Repair specifications
- Part number
- 4630939
- Diagram pipe number
- 15
- Installation route
- 中转接头~分配阀上
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 360 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
