Individual hose record

4442133 Hose Repair Specifications

Excavator · Hitachi · ZX270LC · Hydraulic Pump

Finished length600 mm

Locate this hose

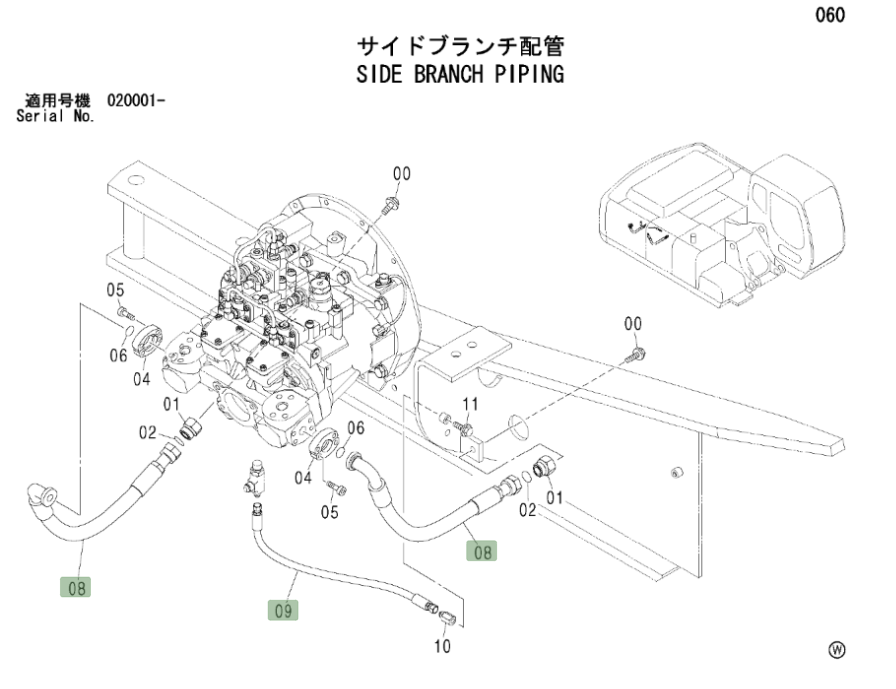

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4442133 before removing the hose.

Hitachi ZX270LC installation diagram showing hydraulic hose 4442133 at Pipe No. 9 — Hitachi ZX270LCPart 4442133 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4442133
Diagram pipe number: 9
Installation route: 液压泵~堵头(减震管)
Hose specification: DN10;1SN-06;18MPa
Finished length: 600 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
