Individual hose record

4200498 Hose Repair Specifications

Excavator · Hitachi · EX100WD · Control Valve

Finished length800 mm

Locate this hose

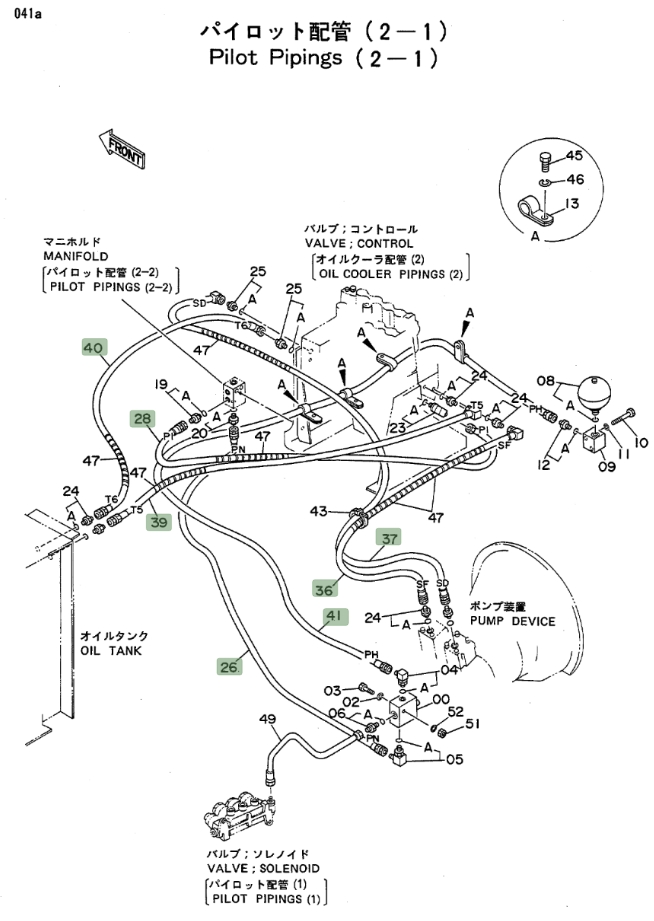

Installation diagram — Pipe No. 28

Locate Pipe No. 28 in the diagram, then confirm part number 4200498 before removing the hose.

Hitachi EX100WD installation diagram showing hydraulic hose 4200498 at Pipe No. 28 — Hitachi EX100WDPart 4200498 · Pipe No. 28Open full-size diagram

Repair specifications

Part number: 4200498
Diagram pipe number: 28
Installation route: 分配阀后~过渡阀块(分配阀)
Hose specification: DN6;2层纤维-4;14MPa
Finished length: 800 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 48

4208419

Installation route: 分配阀上~接线板(中转接头)

Length: 1,000 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 33

4203111

Installation route: 分配阀右~回转马达

Length: 480 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 47

4208418

Installation route: 分配阀下~接线板(中转接头)

Length: 750 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 42

4208414

Installation route: 分配阀下~接线板(中转接头)

Length: 750 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 39

4283165

Installation route: 分配阀上~分配阀下

Length: 1,000 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
