Individual hose record
KTJ13470 Hose Repair Specifications
Excavator · Case · CX500C · Boom Assembly
Finished length1,050 mm
Locate this hose

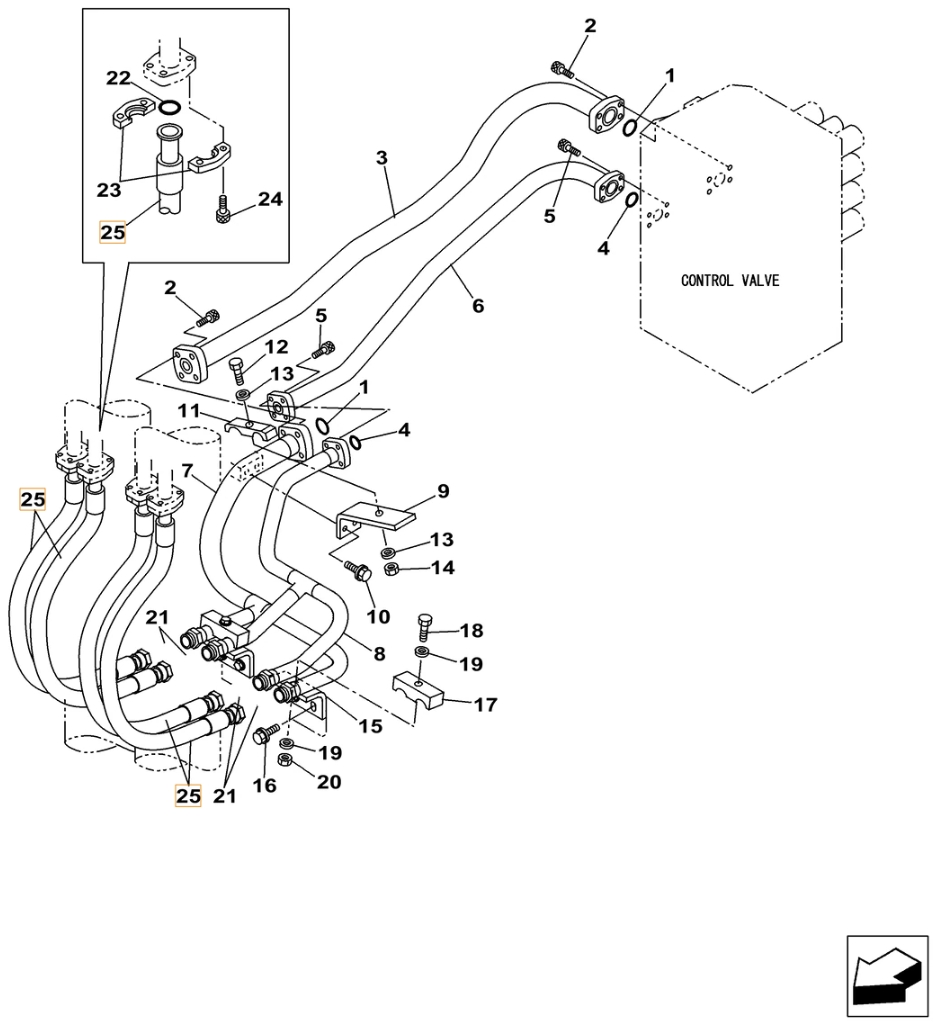

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number KTJ13470 before removing the hose.
Repair specifications
- Part number
- KTJ13470
- Diagram pipe number
- 25
- Installation route
- 大臂油缸
- Hose specification
- DN25;4SP-16;32.5MPa
- Finished length
- 1,050 mm
- Working pressure
- 32.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Quantity
- 4
