Individual hose record
4713507 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-6 · Control Valve
Finished length780 mm
Locate this hose

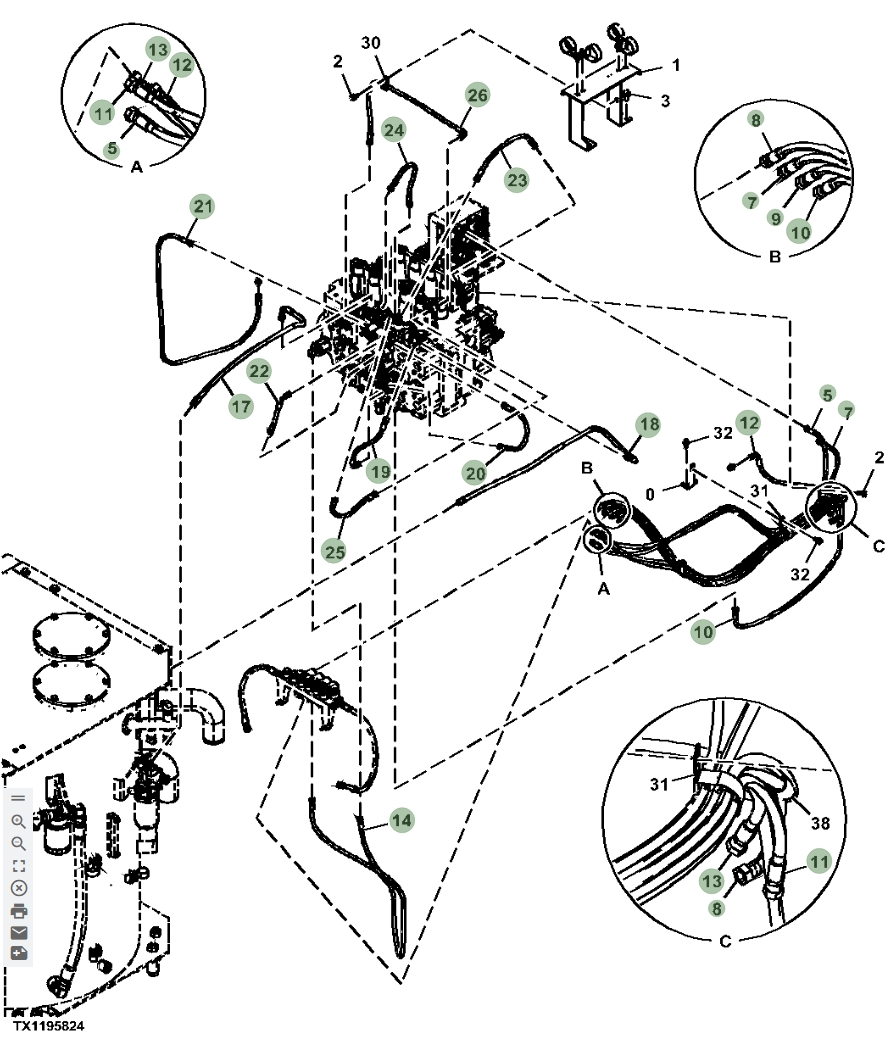

Installation diagram — Pipe No. 26
Locate Pipe No. 26 in the diagram, then confirm part number 4713507 before removing the hose.
Repair specifications
- Part number
- 4713507
- Diagram pipe number
- 26
- Installation route
- 分配阀上左~分配阀前
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 780 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
