Individual hose record

4260310 Hose Repair Specifications

Excavator · Hitachi · ZX160LC-5G · Boom Assembly

Finished length700 mm

Locate this hose

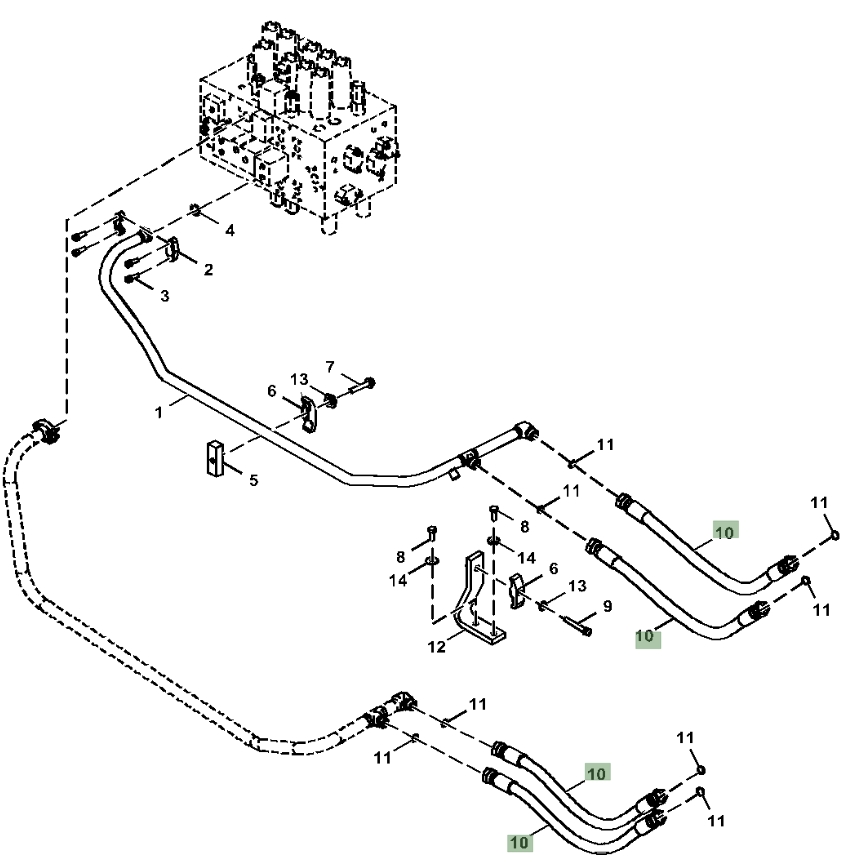

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4260310 before removing the hose.

Part number: 4260310
Diagram pipe number: 10
Installation route: 大臂油缸
Hose specification: DN16;4SP-10;38Mpa
Finished length: 700 mm
Working pressure: 38 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 6

Installation route: 小臂油缸

Length: 900 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 20

Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸

Length: 1,350 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 20

Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸

Length: 1,650 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
