Individual hose record

DS2095001 Hose Repair Specifications

Excavator · Doosan · DX140LC · Control Lever

Finished length1,800 mm

Locate this hose

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number DS2095001 before removing the hose.

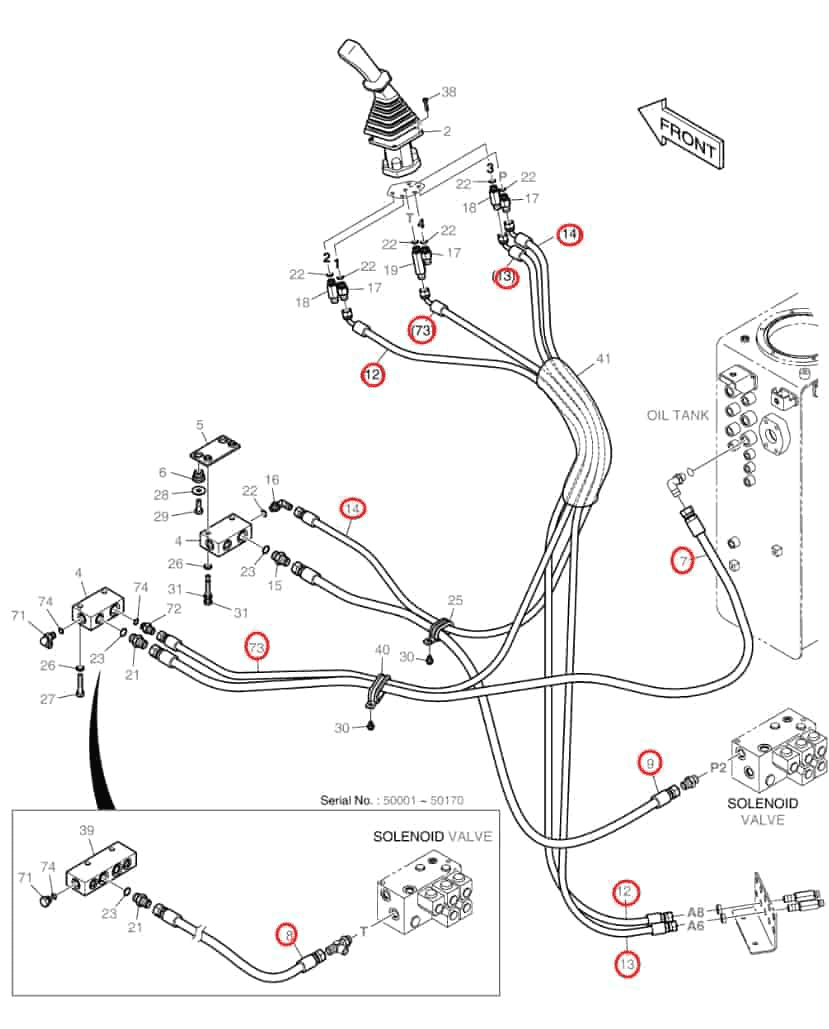

Doosan DX140LC installation diagram showing hydraulic hose DS2095001 at Pipe No. 12 — **Doosan DX140LC**Part DS2095001 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: DS2095001
Diagram pipe number: 12
Installation route: 右手柄1口~中转接头A8口
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,800 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 13

DS2095001

Installation route: 右手柄3口~中转接头A6口

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 73

DS2095003

Installation route: 右手柄T口~回油阀

Length: 1,950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 11

DS2095002

Installation route: 左手柄3口~中转接头A2口

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 72

DS2095004

Installation route: Left control lever port T → return valveOriginal Chinese: 左手柄T口~回油阀

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

DS2095002

Installation route: 左手柄1口~中转接头A1口

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 2

DS2095002

Installation route: 左手柄2口~中转接头A4口

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 14

DS2095002

Installation route: 右手柄P口~进油阀

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

DS2095002

Installation route: 左手柄4口~中转接头A3口

Length: 1,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 70°英制内螺纹60°外锥

View full repair specifications
