Individual hose record

DS2123123 Hose Repair Specifications

Excavator · Doosan · DX140LCR-5 · Control Valve

Finished length590 mm

Locate this hose

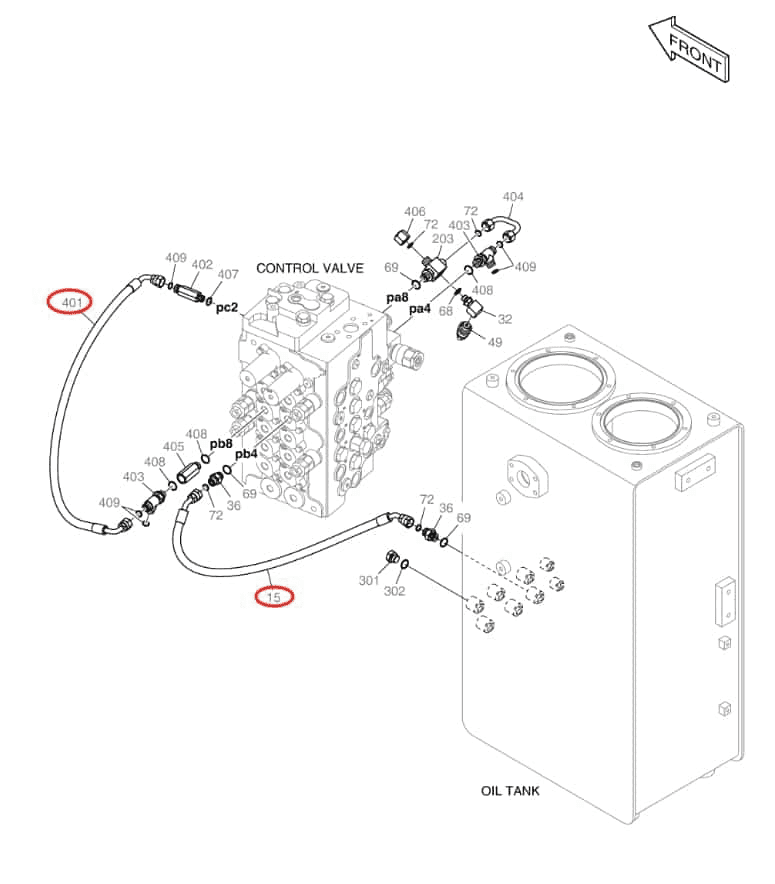

Installation diagram — Pipe No. 401

Locate Pipe No. 401 in the diagram, then confirm part number DS2123123 before removing the hose.

Part number: DS2123123
Diagram pipe number: 401
Installation route: 分配阀PB8口~分配阀PC2口
Hose specification: DN10;1SN-06;18MPa
Finished length: 590 mm
Working pressure: 18 MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 20

Installation route: 分配阀DR口~液压油箱

Length: 1,030 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 23

Installation route: 分配阀PCC口~分配阀DR口

Length: 240 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
