KHJ12230 Hose Repair Specifications

Excavator · Case · CX370C LC · Attachments – Breaker

Finished length3,450 mm

Locate this hose

Installation diagram — Pipe No. 53

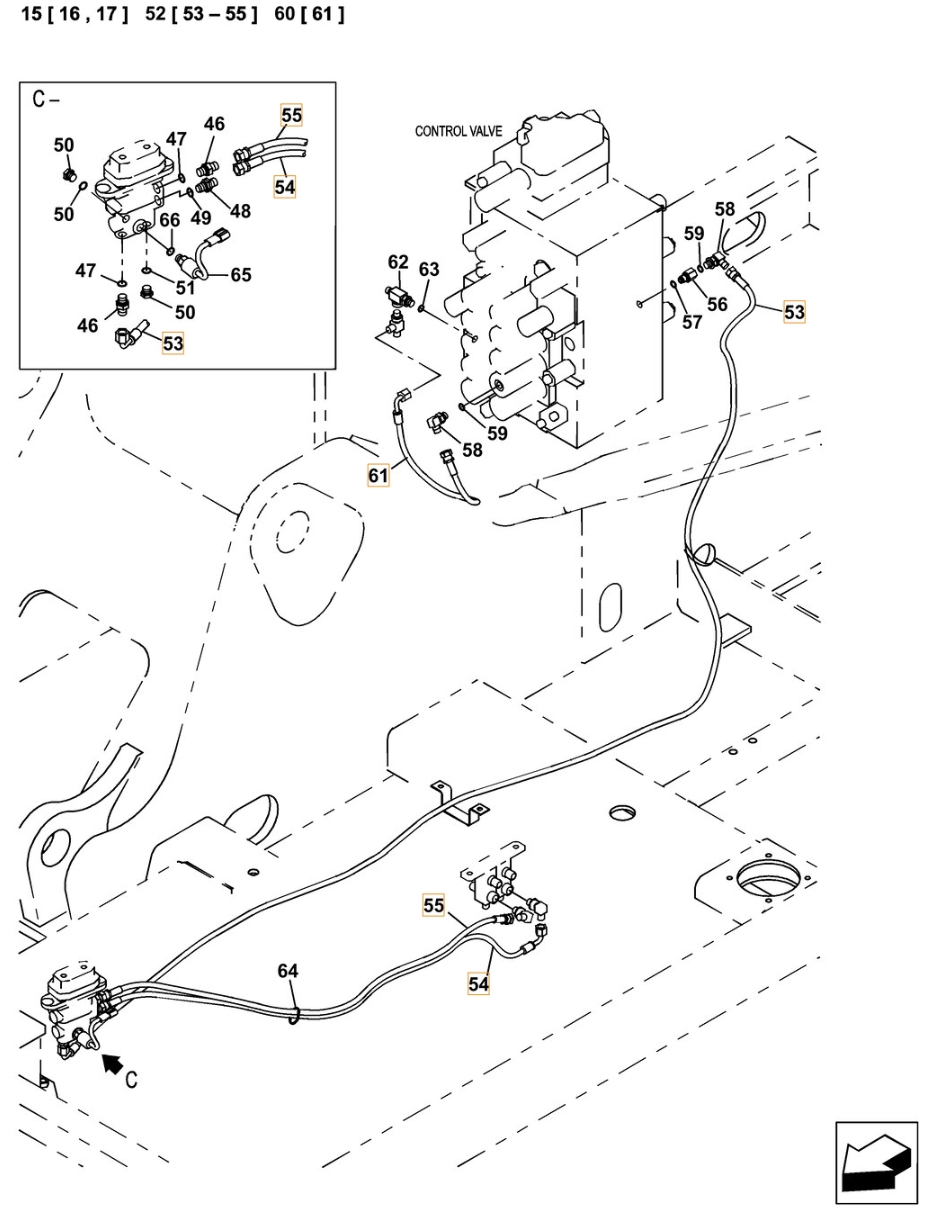

Locate Pipe No. 53 in the diagram, then confirm part number KHJ12230 before removing the hose.

Case CX370C LC installation diagram showing hydraulic hose KHJ12230 at Pipe No. 53 — **Case CX370C LC**Part KHJ12230 · Pipe No. 53Open full-size diagram

Repair specifications

Part number: KHJ12230
Diagram pipe number: 53
Installation route: 破碎器踏板~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,450 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
