Individual hose record

4260310 Hose Repair Specifications

Excavator · Hitachi · EX100M-5 · Boom Assembly

Finished length700 mm

Locate this hose

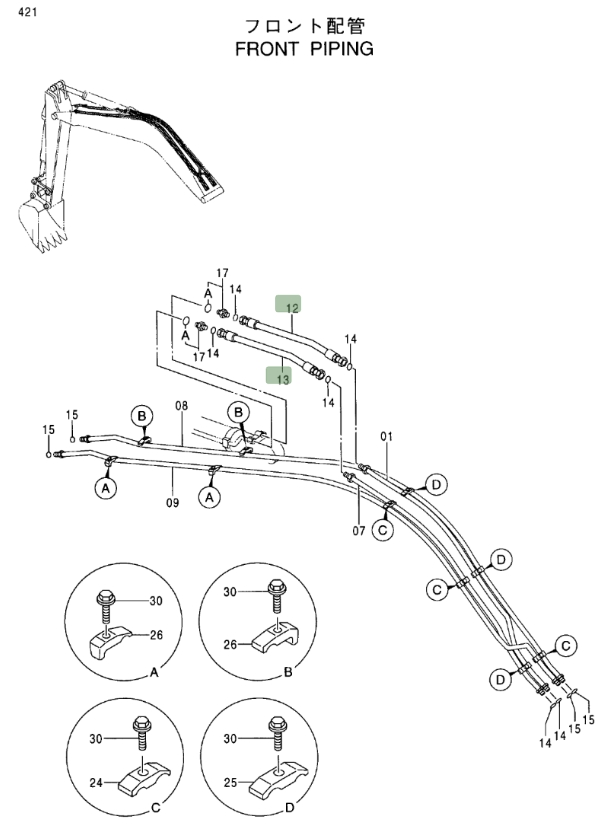

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4260310 before removing the hose.

Hitachi EX100M-5 installation diagram showing hydraulic hose 4260310 at Pipe No. 13 — **Hitachi EX100M-5**Part 4260310 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4260310
Diagram pipe number: 13
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN16;4SP-10;38Mpa
Finished length: 700 mm
Working pressure: 38 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 12

4260311

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 700 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

4260263

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

4265833

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN19;4SP-12;31Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 16

4250056

Installation route: 铲斗油缸(前段)

Length: 1,100 mm
Specification: DN12;4SP-08;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

4265833

Installation route: 小臂油缸前

Length: 1,300 mm
Specification: DN19;4SP-12;31Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4373642

Installation route: 大臂左2(偏置大臂油缸)

Length: 1,200 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 0

4373643

Installation route: 大臂左1(偏置大臂油缸)

Length: 1,200 mm
Specification: DN12;4SP-8;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 19

4285464

Installation route: 大臂油缸

Length: 710 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
