Individual hose record
KAJ3241 Hose Repair Specifications
Excavator · Case · CX700 · Swing Motor
Finished length2,750 mm
Locate this hose

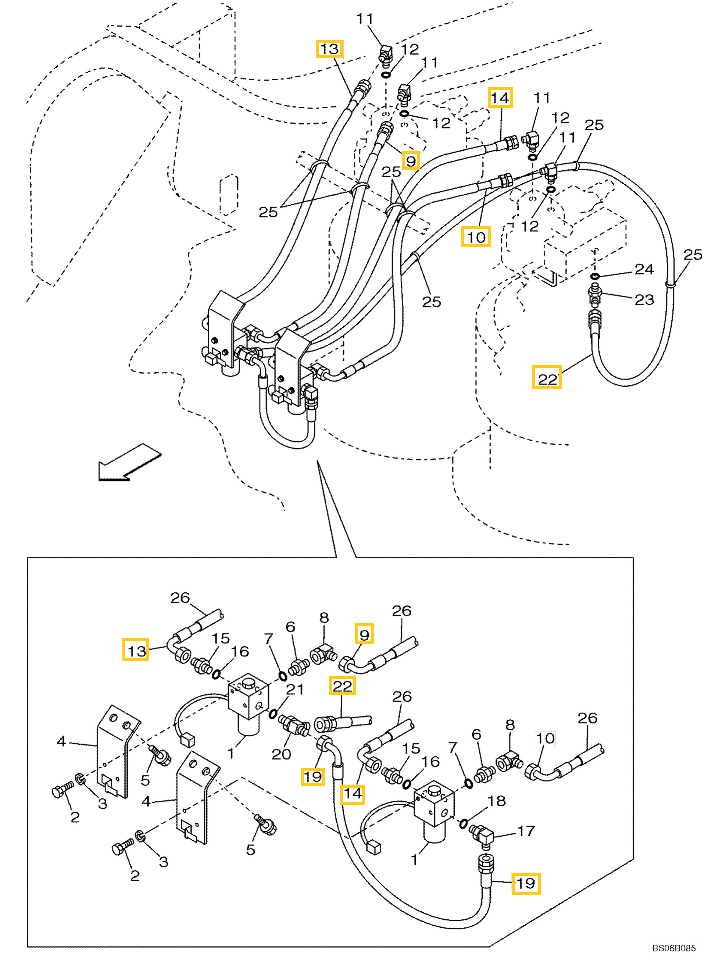

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number KAJ3241 before removing the hose.
Repair specifications
- Part number
- KAJ3241
- Diagram pipe number
- 22
- Installation route
- 回转马达(左)~电磁阀(回转马达)(右)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,750 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
