Individual hose record
4715255 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-5A · Hydraulic Tank
Finished length2,100 mm
Locate this hose

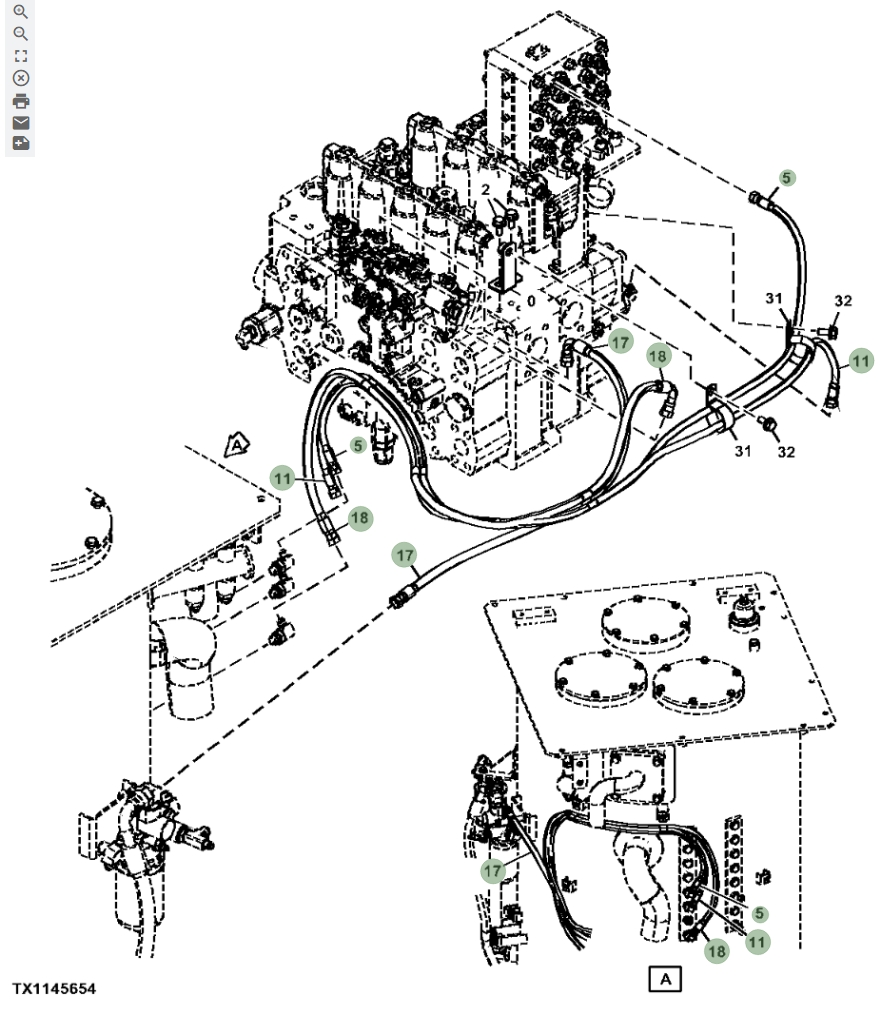

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4715255 before removing the hose.
Repair specifications
- Part number
- 4715255
- Diagram pipe number
- 5
- Installation route
- 液压油箱~中转接头
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 2,100 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
