Individual hose record

4365790 Hose Repair Specifications

Excavator · Hitachi · EX330-5 · Solenoid Valve

Finished length2,400 mm

Locate this hose

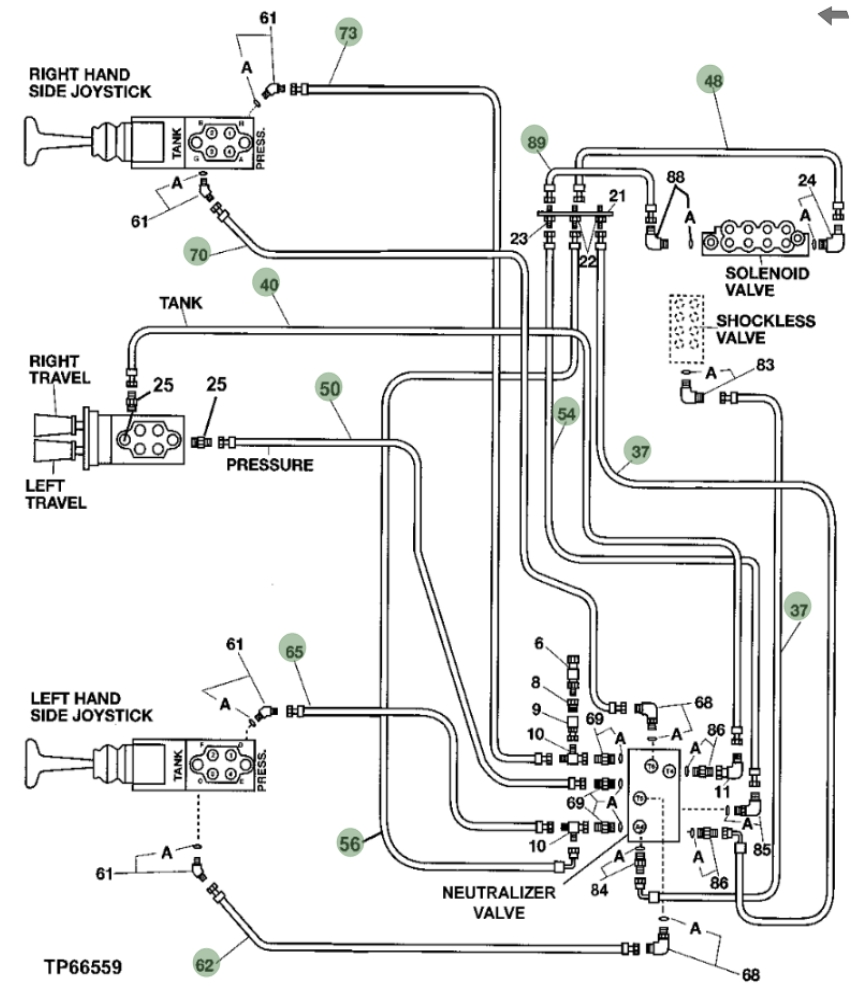

Installation diagram — Pipe No. 89

Locate Pipe No. 89 in the diagram, then confirm part number 4365790 before removing the hose.

Hitachi EX330-5 installation diagram showing hydraulic hose 4365790 at Pipe No. 89 — Hitachi EX330-5Part 4365790 · Pipe No. 89Open full-size diagram

Repair specifications

Part number: 4365790
Diagram pipe number: 89
Installation route: 电磁阀~接线板(电磁阀)
Hose specification: DN10;1SN-06;18MPa
Finished length: 2,400 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 89

4405561

Installation route: 电磁阀~接线板(电磁阀)

Length: 2,600 mm
Specification: DN12;1SN-8;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
