730501004886 Hose Repair Specifications

Excavator · Sunward · SWE470E-3 · Boom Assembly

Finished length900 mm

Locate this hose

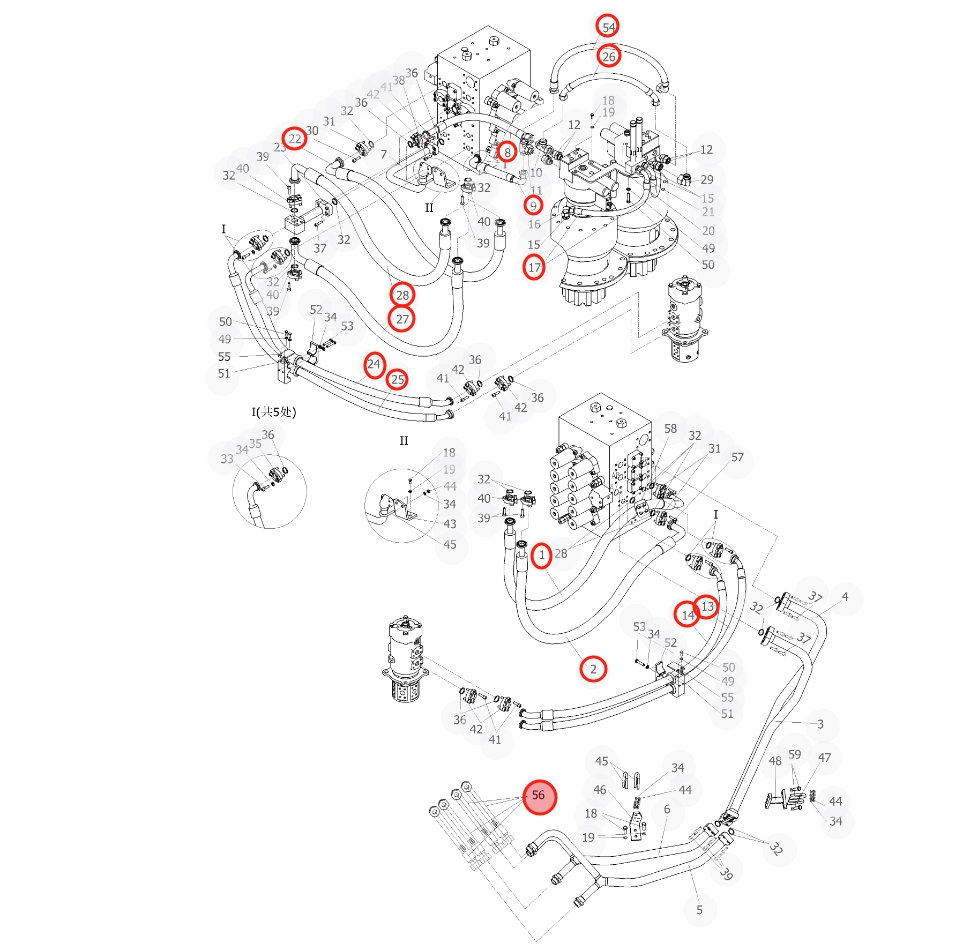

Installation diagram — Pipe No. 56

Locate Pipe No. 56 in the diagram, then confirm part number 730501004886 before removing the hose.

Sunward SWE470E-3 installation diagram showing hydraulic hose 730501004886 at Pipe No. 56 — Sunward SWE470E-3Part 730501004886 · Pipe No. 56Open full-size diagram

Repair specifications

Part number: 730501004886
Diagram pipe number: 56
Installation route: 大臂油缸
Hose specification: DN25;6SH-16;35MPa
Finished length: 900 mm
Working pressure: 35 MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型
Quantity: 4

Same system

Related Hoses

Diagram Pipe No. 7

730501004542

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 1,370 mm
Specification: DN32;6SH-20;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 7

730501004542

Installation route: 小臂油缸中

Length: 1,370 mm
Specification: DN32;6SH-20;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 8

730502007727

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 1,520 mm
Specification: DN32;6SH-20;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型

View full repair specifications
