Individual hose record
4426459 Hose Repair Specifications
Excavator · Hitachi · EX50UNA · Attachments – Breaker
Finished length760 mm
Locate this hose

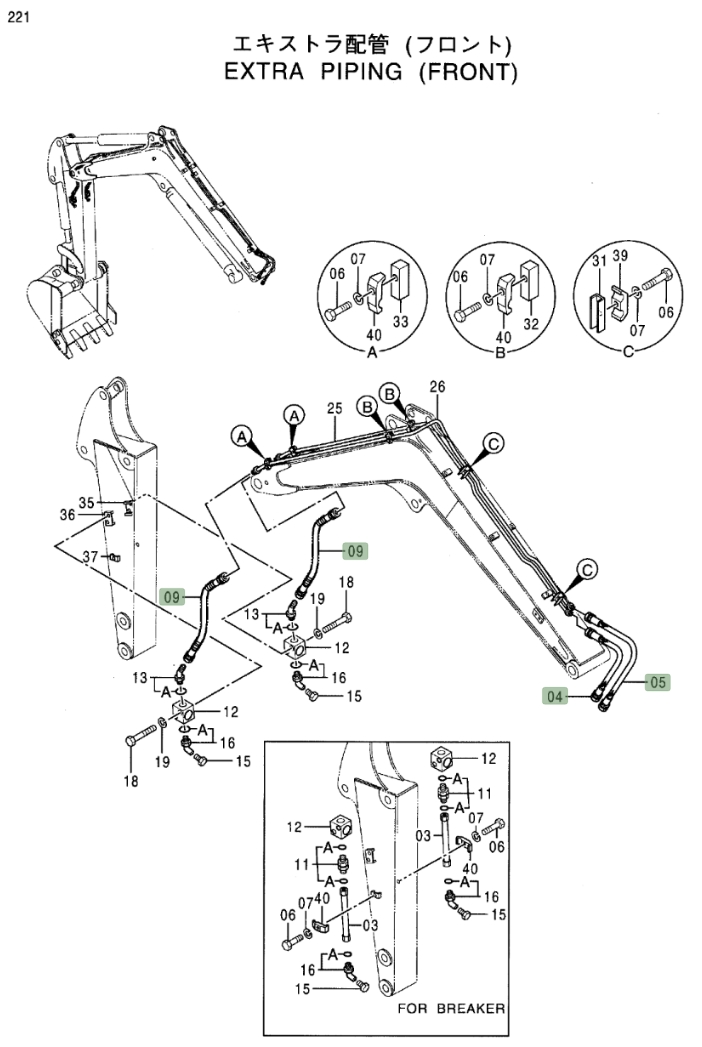

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4426459 before removing the hose.
Repair specifications
- Part number
- 4426459
- Diagram pipe number
- 4
- Installation route
- 大臂(破碎器)~过渡阀块(大臂下)
- Hose specification
- DN12;2SN-8;27.5MPa
- Finished length
- 760 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
