Individual hose record
730502003589 Hose Repair Specifications
Excavator · Sunward · SWE18UF-3 · Swing Motor
Finished length550 mm
Locate this hose

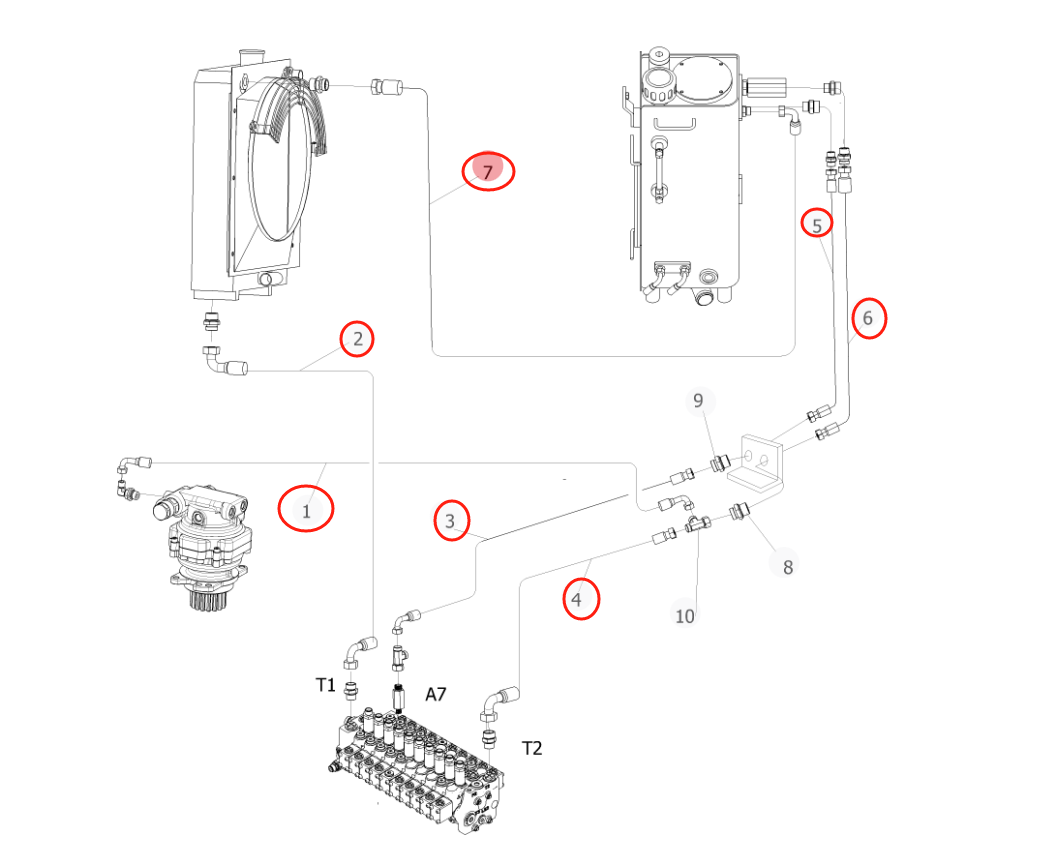

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 730502003589 before removing the hose.
Repair specifications
- Part number
- 730502003589
- Diagram pipe number
- 1
- Installation route
- 回转马达~液压油箱
- Hose specification
- DN8;1SN-05;22.5MPa
- Finished length
- 550 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
