Individual hose record
4308648 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3 · Control Valve
Finished length450 mm
Locate this hose

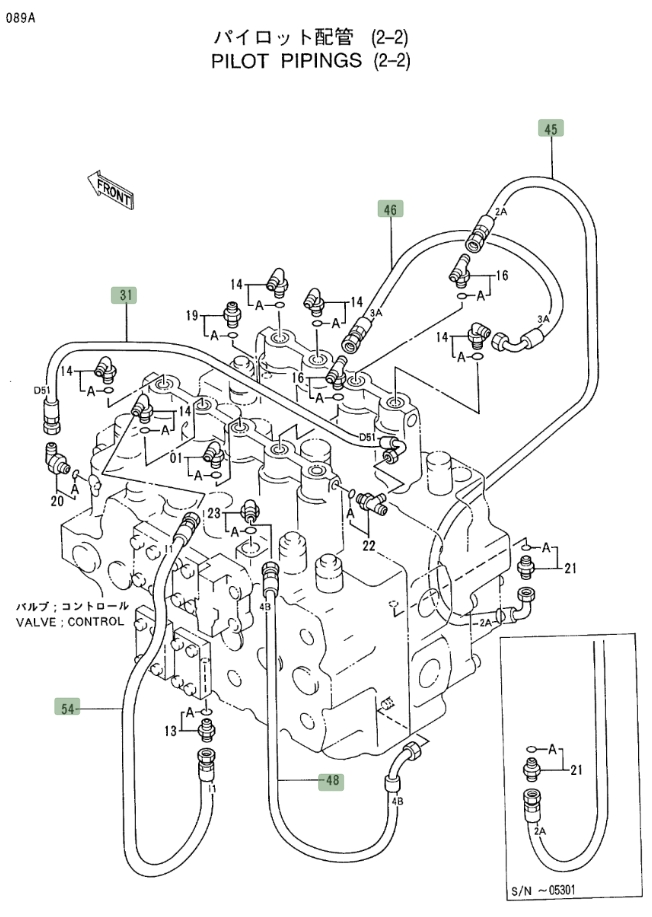

Installation diagram — Pipe No. 46
Locate Pipe No. 46 in the diagram, then confirm part number 4308648 before removing the hose.
Repair specifications
- Part number
- 4308648
- Diagram pipe number
- 46
- Installation route
- 分配阀上左~分配阀上右
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 450 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
