Individual hose record
4661819 Hose Repair Specifications
Excavator · Hitachi · ZX350LC-5G · Control Lever
Finished length3,200 mm
Locate this hose

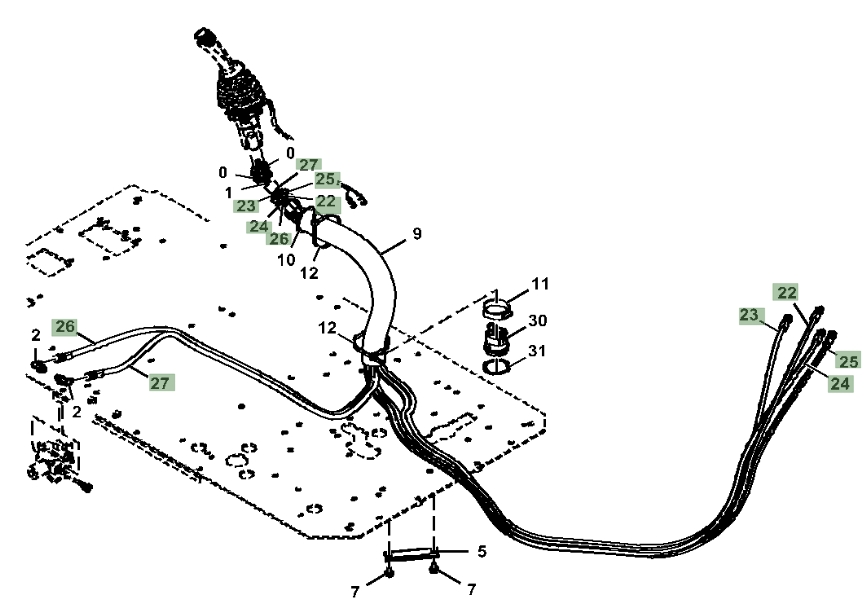

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4661819 before removing the hose.
Repair specifications
- Part number
- 4661819
- Diagram pipe number
- 22
- Installation route
- 右手柄~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,200 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
