- Length
- 1,340 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 45°美制内螺纹74°内锥
Individual hose record
4459255 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Attachments
Finished length1,800 mm
Locate this hose

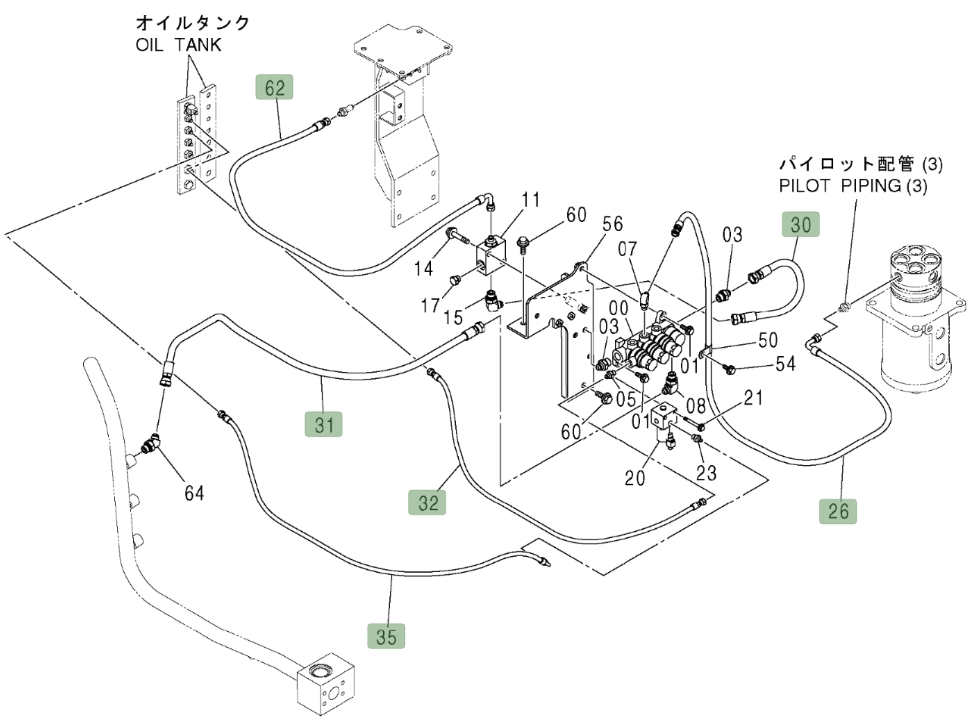

Installation diagram — Pipe No. 62
Locate Pipe No. 62 in the diagram, then confirm part number 4459255 before removing the hose.
Repair specifications
- Part number
- 4459255
- Diagram pipe number
- 62
- Installation route
- 过渡阀块(分配阀)~过渡阀块(支架)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,800 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 3,200 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 3,200 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
