Individual hose record

4453063 Hose Repair Specifications

Excavator · Hitachi · ZX290LC-5N · Attachments – Breaker

Finished length630 mm

Locate this hose

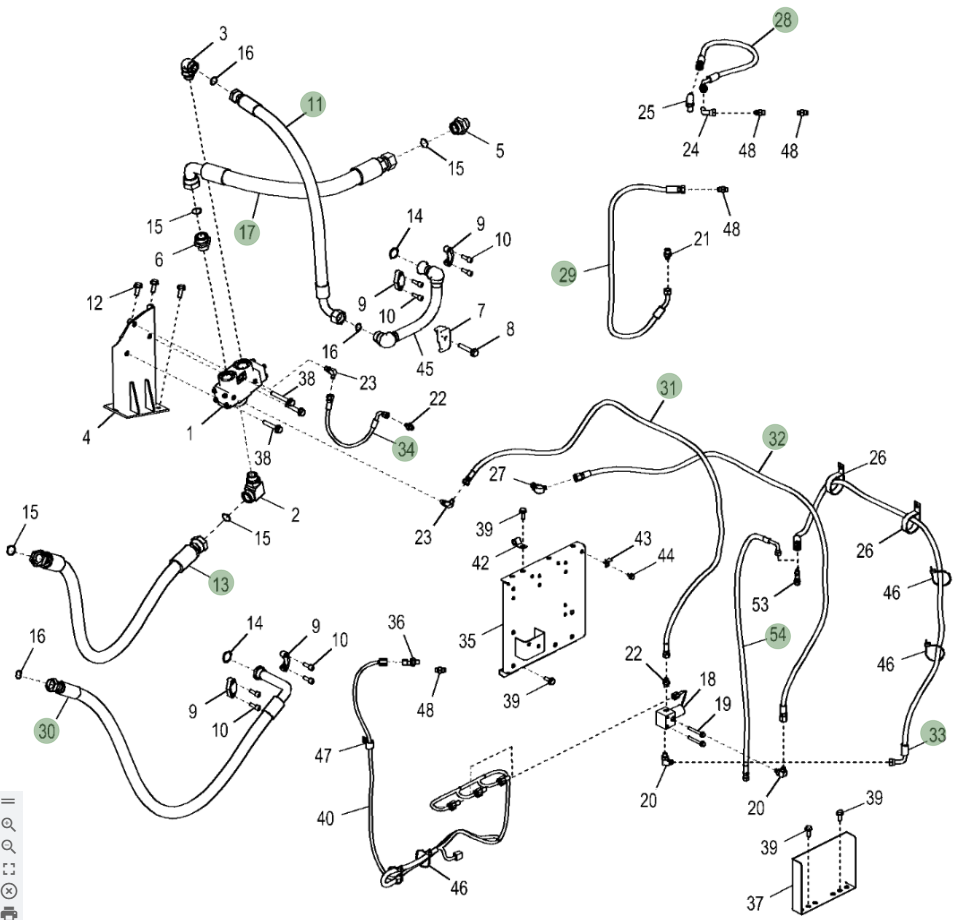

Installation diagram — Pipe No. 28

Locate Pipe No. 28 in the diagram, then confirm part number 4453063 before removing the hose.

Hitachi ZX290LC-5N installation diagram showing hydraulic hose 4453063 at Pipe No. 28 — **Hitachi ZX290LC-5N**Part 4453063 · Pipe No. 28Open full-size diagram

Repair specifications

Part number: 4453063
Diagram pipe number: 28
Installation route: 中转接头~分配阀上
Hose specification: DN10;1SN-6;7Mpa
Finished length: 630 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

4648204

Installation route: 破碎器踏板~进回油阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4647877

Installation route: 过渡阀块(破碎器)~分配阀左

Length: 950 mm
Specification: DN25;4SP-16;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

4648205

Installation route: 破碎器踏板~进回油阀

Length: 650 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 31

4429016

Installation route: 过渡阀块(破碎器)~电磁阀(破碎器)

Length: 2,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 17

FF509627

Installation route: 过渡阀块(破碎器)~回油铁管(分配阀)

Length: 800 mm
Specification: DN31;1SN-20;6.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 31

4449378

Installation route: 过渡阀块(破碎器)~电磁阀(破碎器)

Length: 2,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 34

4452734

Installation route: 电磁阀~过渡阀块(破碎器)

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 13

9258917

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,300 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
